VScom USB-2COMi-M
(Replaced by USB-2COM Plus)

USB to 2x RS422/485 ports (DB9, male and terminal block)

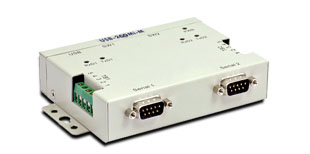

Vscom USB-2COMi-M, an USB to 2 x RS422/485 serial port converter DB9 and terminal block connector
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.

Features

  • Phased Out, no longer available
  • Metal case
  • DIN-Rail mountable
  • RS422/485 DB9 male port
  • Terminal block
  • Speed up to 3000 kbps
  • no external power supply

Back to Top
Specifications
Hardware Specifications
  Serial interface
2 x RS422/485 configured by DIP switch
Speed up to 3000 kbps
Connector 2 x DB9 male and Terminal Block
  Available Modes
RS422 full duplex
RS485 4-wire, full duplex
RS485 2-wire, half duplex, with echo
RS485 2-wire, half duplex, without echo
  Signals
RS422: Tx+/-, Rx+/-, RTS+/-, CTS+/-, GND
RS485 4-wire: Tx+/-, Rx+/-, GND
RS485 2-wire: Data+/-, GND
  USB Interface
USB 2.0
Bus powered
No external power supply
  Driver
Windows 2000 to Windows 10 (x86 and x64)
Windows Server 2000 to 2012 (x86 and x64)
Linux (Kernel 2.6 built-in, 2.4 available)
Back to Top
Ordering Information
  Part Number
643
  Product Name
VScom USB-2COMi-M
  Packing list
VScom USB-2COMi-M Adapter
USB cable 0,9m
  Optional Accessories
DK 35A DIN-Rail mounting kit
  Dimensions
115×84×25 mm³ (W×L×H)
137×84×25 mm³ with DB9 connector and ears
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
