VScom 800LS UPCI

8x RS-232

VScom 800LS UPCI, a 8 Port RS232 PCI card, 16C550 UART

	Features

	Specifications

	Ordering Information

	Drivers & Documentation

	Datasheet

	Inquiry this product

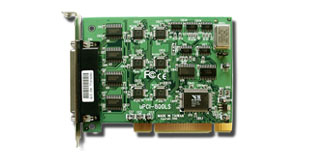

	View Larger Image

The L-series is an economic solution for standard applications. The serial ports are based on a 16C550A UART with 16 byte FIFO. The eightfold maximum speed allows some irregular transmission rates.

Features
Phased Out, no longer available Universal PCI 3.3 / 5.0V 8x RS232 UART 16550 (16 Byte FIFO) Speed 921 kbps PCI Plug and Play IRQ Interrupt sharing, only one Interrupt per card Drivers for Windows 95 to 7/2008 R2 Software compatibel with DOS, Windows 3.11, OS/2, Linux and div. Unix Use connection cable OPT8D-M or OPT8C
Back to Top
Specifications
Hardware Specifications
Ports	8x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD)
UART	8x 16550 (16 Byte FIFO)
Address	Plug and Play
Interrupts	PCI Plug and Play, only one interrupt/card
Speed	max. 921 kbps jumper for limitation at 115.2kbps
Bus interface	Universal PCI 3.3V / 5.0V
Connectors	1x DB62 female
Size	L120mm x H100mm
Temperature	0°C - 55°C
Back to Top
Performance Features
FIFO	FIFO size 16Byte adjustable Rx 1,4,8,14Bytes Tx 1 up to 16Bytes
Handshake	RTS / CTS Xon / Xoff
Speed	1bps up to 921kbps Multiplication factor for legacy applications
UART	UART emulation of 8250 and 16450
Back to Top
Operating Systems
Windows 2000 up to 7	VScom high performance serial driver, x86 and x64 Editions
Server 2000 to 2008 R2	VScom high performance serial driver, x86 and x64 Editions
Windows NT 4.0	VScom high performance serial driver control panel applet
Windows 95, 98, SE, ME	VScom high performance serial driver
DOS	virtuell address driver and compatibility tools real DOS Com port emulation
OS/2	Supported by COM16 driver in recent system releases Third party serial driver SIO.SYS available
Linux	Kernel 2.6 and up: built-in support Previous kernel: VScom high performance real tty driver
div.UNIX	configuration instructions
Back to Top
Ordering Information
4466	VScom 800LS UPCI
Back to Top
Options
705	OPT8D-S connection cable DB 62 on 8 x DSUB 9 male (with screws)
404	OPT8D-M connection cable DB 62 on 8 x DSUB 9 male (with nuts)
706	OPT8C connection cable DB 62 on 8 x DSUB 25
704	OPT8M9 connection box DB 62 with 8 x DSUB 9
Back to Top
Packaging
Packing list	VScom 800LS UPCI card CD Driver and English documentation
Back to Top

You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

* Specifications are subject to change without notice.
* All the trademarks and brands are property of their rightful owners.
