OPT8D-M
(Replaced by OPT8D-S)

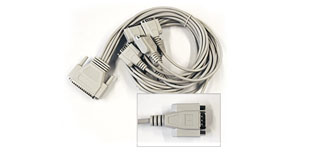

RS232 Octopus-cable DB62 to 8x DB9 male (with nuts)

Cable eight times DSub9 male connector with fixing nuts (Terminal type)
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image
  BUY
This "Octopus" cable separates the eight serial ports from the 62-signal combination connector. Each port is available on a DB9 male connector. The connector is equipped with nuts and behaves like a serial port built-in to a PC.
Features

  • Phased Out, no longer available
  • RS232 connection cable
  • DB 62 on 8 x DSUB 9 male (with nuts)
  • length 100cm
  • Connection cable for VScom 800E PCIex, VScom 800H UPCI and VScom 800LS UPCI

Back to Top
Specifications
Parameters
  Signals
RxD(2), TxD(3), CTS(8), RTS(7), DTR(4), GND(5), DCD(1), DSR(6)
  Cable length
100cm
  Fixing
Nuts like connector on PC (COM1)
Back to Top
Ordering Information
  404
OPT8D-M
  Packing list
OPT8D-M cable
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
