RISE 4300

Q7 based / VIA Nano 1.3GHz Industrial Embedded System

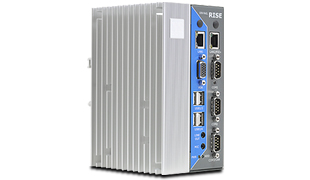

RISE 4300
Features
Specifications
Ordering Information
Datasheet
Inquiry this product
View Larger Image
View Appearance
The RISE series of DinRail-PC is designed for harsh industrial environments. It features fanless and cableless, low power consumption and operating over wide temperature ranges. Its reliable design allows to withstand mechanical vibrations, extremely hot or cold environments, power failures or environmental electrostatic discharges.

The RISE series has a modular and reliable design based on the newly emerged standard of Qseven core modules, which supports both Intel's Atom Z5xxP and Via's Nano/Eden high performance CPUs.

The RISE series integrates a rich choice of connectivity devices, such as multiple LANs, USB and serial ports, VGA, digital I/O and optionally WLAN, Bluetooth, 3G/GPRS modems to match different industrial application requests.

The option of CAN bus is realized in the RISE 4310 model.

Read more information about RISE Series.
Features

  • VIA Nano 1.3GHz
  • VX800 chipset, 800/500MHz FSB
  • 1 GB DDR2 SDRAM
  • Express Card 34 slot (USB interface)
  • HD Audio, speaker and microphone
  • HDD/SSD drive bay
  • 2 x Giga LAN
  • Digital and Analogue I/O
  • Option: WLAN, Bluetooth, GPS, 3G/GSM
  • Option: CAN Bus 1Mbit/s

Back to Top
Specifications
Chassis
  Construction
Full size stainless steel, Aluminum cooling plate with fins
  Mounting configuration
DIN Rail
  Cooling system
Passive heatsink, fanless
  LED indicator
Power on/off, HDD access, LAN access
  Expansion slot
* 1 x Mini PCI Express : PCIe x 1, USB 2.0 and 1.x
* 1 x Express Card 34, USB 2.0 and 1.x only
  Dimensions
163 x 111 x 83 mm
  Power switch
Bottom side
  Reset Switch
Bottom side
Back to Top
Hardware
  Processor
VIA NANO 64 bit @ 1.3GHz, 800MHz FSB
  CPU socket
Q7 module
  BIOS
Phoenix - Award BIOS
  Chipset
VIA VX800
Back to Top
Memory
  Memory Type
DDR2 1GB
  Memory Socket
Soldered onto Q7 module
  BIOS
4MBit SPI Flash
Back to Top
Video
  VGA Controller
VIA Chrome9™ HC3 integrated graphics
  Video RAM
Up to 256MB frame buffer
  Interface
VGA
  Resolution
Up to 1920 × 1080 / 32bit
  Extras
MPEG-2, MPEG-4, VC1 and DiVX video decoding acceleration
Back to Top
Integrated Devices
  HDD/SSD Bay
1 x 1.8" SATA HDD or SSD
  CF card slot
1 x CF card in True IDE mode
  HD-Audio
Mic-in
1 x Speaker-out
  Real Time clock
Standard
  Keyboard/Mouse
Connect at USB
Internal pin header for PS/2 Keyboard and Mouse
Back to Top
Connectivity
  LAN
2 x RJ45 GigaLAN (Marvell 88E8057) support PXE boot
  UBS
4 x USB 2.0, support boot function
  VGA
1 x 15-pin connector
  Com Ports
* 2 x RS232 DB9 male, max. 115.200bps
* 1 x RS232 DB9 male, max. 500.000bps
* 1 x RS422/485 on terminal block
  RS422/485
* Up to 1 Mbit/s (theor. 12 MBit/s)
* RS422 Full-Duplex, RS485 bus mode configured by DIP switch
* RS485 Automatic Transceiver control
* Signals on Terminal Block
  HD-Audio
Line-in (Mic-in)
Line-out ear-jet connectors
  Digital I/O
Terminal Blocks on Top and Bottom side
4 x Output
4 x Input
2 x Counter
2 x ADC
1 x I²C
  CAN Bus
CAN bus is realized in the RISE 4310 model
Back to Top
Power Supply
  Power Input
DC 10-30V
  Power Consumption
Min 17W
Environment
  Operating Temp.
−20° to +55°C
  Storage Temp.
−20° to +80°C
Supported OS
  Microsoft
Windows XP/XPE, Windows 7
  Linux
Kernel 2.4 / 2.6 / 3.x
Back to Top
Approvals
  EMC
FCC Class A, CE Class A
  Environment
RoHS
Back to Top
Ordering Information
  Art.No
3870
  Product Name
RISE 4300
  Option CAN
CAN bus interface, replaces Com3, See RISE 3310 system
  Option 1.0GHz
Processor Nano @ 1.0GHz See RISE 4200 system
  Packing list
. RISE 4300 Embedded System
. Terminal blocks for Digital-I/O and Power supply
. CD-ROM with English documentation, drivers and tools
Back to Top
