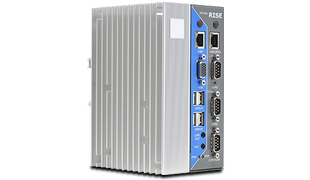

RISE 3310

Q7 based / Intel Atom Z530P 1.6 GHz Industrial Embedded System with CAN Bus

RISE 3310
Features
Specifications
Ordering Information
Datasheet
Inquiry this product
View Larger Image
View Appearance
The RISE series of DinRail-PC is designed for harsh industrial environments. It features fanless and cableless, low power consumption and operating over wide temperature ranges. Its reliable design allows to withstand mechanical vibrations, extremely hot or cold environments, power failures or environmental electrostatic discharges.

The RISE series has a modular and reliable design based on the newly emerged standard of Qseven core modules, which supports both Intel's Atom Z5xxP and Via's Nano/Eden high performance CPUs.

The RISE series integrates a rich choice of connectivity devices, such as multiple LANs, USB and serial ports, VGA, digital I/O and optionally WLAN, Bluetooth, 3G/GPRS modems, CAN and POE+ to match different industrial application requests.

Read more information about RISE Series.

Features

  • Intel Atom Z530P 1.6 GHz
  • 533MHz FSB
  • 512 MB DDR2 SDRAM
  • Express Card 34 slot (USB interface)
  • HD Audio, speaker and microphone
  • HDD/SSD drive bay
  • 2 x Giga LAN
  • Digital and Analogue I/O
  • CAN Bus 1Mbit/s
  • Option: WLAN, Bluetooth, GPS, 3G/GSM

Back to Top
Specifications
Chassis
  Construction
Full size stainless steel, Aluminum cooling plate with fins
  Mounting configuration
DIN Rail
  Cooling system
Passive heatsink, fanless
  LED indicator
Power on/off, HDD access, LAN access
  Expansion slot
* 1 x Mini PCI Express : PCIe x1, USB 2.0 and 1.x
* 1 x Express Card 34, USB 2.0 and 1.x only
  Dimensions
163 x 111 x 83 mm
  Power switch
Bottom side
  Reset Switch
Bottom side
Back to Top
Hardware
  Processor
Intel Atom Z530P @ 1.6GHz, 533MHz FSB
  Cores
2 by Hyperthreading
  CPU socket
Q7 module
  BIOS
Phoenix - Award BIOS
  Chipset
US15WP
Back to Top
Memory
  Memory Type
DDR2 512MB
  Memory Socket
Soldered onto Q7 module
  BIOS
8MBit SuperFlash
Back to Top
Video
  VGA Controller
Graphics Memory Controller Hub integrated in US15W
  Video RAM
Up to 128MB frame buffer
  Interface
VGA
  Resolution
Up to 1280 × 1024 / 32bit
  Extras
MPEG-2, MPEG-4, VC1, WMV9 and H.264 video decoding acceleration
Back to Top
Integrated Devices
  HDD/SSD Bay
1 x 1.8" SATA HDD or SSD
  CF card slot
1 x CF card in True IDE mode
  HD-Audio
Mic-in
1 x Speaker-out
  Real Time clock
Standard
  Keyboard/Mouse
Connect at USB
Internal pin header for PS/2 Keyboard and Mouse
Back to Top
Connectivity
  LAN
2 x RJ45 GigaLAN (Marvell 88E8057) support PXE boot
  UBS
4 x USB 2.0, support boot function
  VGA
1 x 15-pin connector
  Com Ports
* 2 x RS232 DB9 male, max. 115.200bps
* 1 x RS422/485 on terminal block
  RS422/485
* Up to 1 Mbit/s (theor. 12 MBit/s)
* RS422 Full-Duplex, RS485 bus mode configured by DIP switch
* RS485 Automatic Transceiver control
* Signals on Terminal Block
  HD-Audio
Line-in (Mic-in)
Line-out ear-jet connectors
  Digital I/O
Terminal Blocks on Top and Bottom side
4 x Output
4 x Input
2 x Counter
2 x ADC
1 x I²C
Back to Top
CAN Interface
  Speed
CAN High Speed (up to 1Mbit/s) for transmit/receive
  Signals
CAN_H, CAN_L, CAN_GND
  Controller
SJA1000 (Philips)
  Transceiver
TJA1050 (Philips)
  Standards
CAN 2.0A and 2.0B, ISO11898
  CAN Listen Mode
Passive receive of CAN Frames, neither ACK bits nor Error Frames
  Connector
DB9 male
  Library
Functions for simple access
  CANFestival
CANopen examples showing Master/Slave communication
Back to Top
Power Supply
  Power Input
DC 10-30V
  Power Consumption
Min 17W
Environment
  Operating Temp.
−20° to +60°C
  Storage Temp.
−20° to +80°C
Supported OS
  Microsoft
Windows XP/XPE, Windows 7
  Linux
Kernel 2.4 / 2.6 / 3.x
Back to Top
Approvals
  EMC
FCC Class A, CE Class A
  Environment
RoHS
Back to Top
Ordering Information
  Art.No
3883
  Product Name
RISE 3310
  Option PoE+
Alternative supply 25W Power over Ethernet
By PoE+ 802.3at standard with RISE 3311
  Option 1.1GHz
On Special Request : Processor Z510P @ 1.1GHz
  Option 1.33GHz
On Special Request : Processor Z520PT @ 1.33GHz
  Packing list
. RISE 3310 Embedded System
. Terminal blocks for Digital-I/O and Power supply
. CD-ROM with English documentation, drivers and tools
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
