Mini size 1 port RS232 serial device server |
 |
|
 |
|
|
|

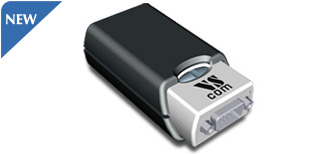

The NetCom Mini P is an easy-to-use network-based serial device server for connecting one RS232 device like CNC, PLC, weighting scale, scanner and other directly to the 10/100Mbps Ethernet network running TCP/IP. The small and lightweight plastic case allows to mount it by the connection cables.
NetCom Mini P is configured over Web Browser. Windows detects NetCom Mini P using UPNP function, the NetCom UPnP Manager also detects them in the LAN using UPNP. This UPnP Manager will also open the Web Browser to configure the NetCom Mini P.
The NetCom Mini P serves as a transparent serial channel without operating system and distance limitation. The serial port redirection uses the protocol known as RFC2217.
This is well known and tested for many use cases, so NetCom Mini P is a possible extension for existing installations. The NetCom UPnP Manager also installs devices communicating via the Internet.
More information about VSCOM NetCom Mini.
Keywords: Serial to Ethernet converter, RS232, Device Server, Serial Port Server, RS232 zu Ethernet LAN Adapter, TCP/IP, Com Port Redirector RFC2217
A Serial Device Server for TCP/IP on Ethernet and Internet, RS232 as Com Ports in Windows by protocol RFC2217.
|
|
| Features |
- Phased Out, no longer available
- Can control 1 x RS232 device located virtually anywhere (via Ethernet or Internet)
- LAN interface 10BaseT/100BaseTx Ethernet
- UPnP Manager automatically finds NetCom Mini devices in the network
- Configuration over WEB Browser
- Support TCP/IP, UDP, DHCP/Auto-IP, ICMP, DNS, UPNP, HTTP, RFC2217
- Small plastic case, lightweight
|
 Back to Top |
| Specifications |
| Hardware |
Processor |
ARM 7 SoC |
I/O controller |
Embedded UART |
Connector type |
RJ45 for LAN, DSUB 9 male for serial Port |
| Back to Top |
| Interface |
LAN interface |
Auto-detecting 10BaseT/100BaseTx
|
Protocols |
TCP/IP, UDP, DHCP/Auto-IP, ICMP, DNS, HTTP, UPNP, RFC2217 |
Serial interface |
RS232 |
No. of port |
1, Speed up to 115kbps |
Available Modes |
RS232 full duplex |
Signals |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
| Back to Top |
| Performance |
Speed |
Up to 115kbps |
Parity |
None, even, odd, space, mark |
Data bits |
5, 6, 7, 8 |
Stop bits |
1, 1.5, 2 |
IRQ |
None |
I/O address |
None |
| Back to Top |
| Operating Modes |
Driver Mode |
VScom Driver for Windows XP to 7, Server 2003 to 2008 R2, both x86 and x64 Editions. The driver creates a virtual Com Port, and takes advantage of certain VScom extensions to RFC2217.
The UPnP Manager detects NetCom Mini Servers, and permits to install them as virtual Com Ports in Windows. The Manager also installs servers connected to via Internet. |
TCP Raw Server |
Raw data transfer over TCP/IP |
Telnet |
RFC2217, Com Port Control Option
This extension of Telnet is used by the Windows Driver. There are several alternative drivers and libraries available to support this protocol. Some may be available for special operating systems, e.g. Linux may use the cyclades-serial-client.
|
| Back to Top |
| Special Features |
Installation |
NetCom UPnP Manager automatically finds NetCom Mini devices in the network |
Detection |
Windows detects configured devices using UPNP
|
Configuration |
Configuration over WEB Browser |
DNS |
Domain Name Server support |
Firmware |
Firmware update over Manager Software |
LEDs |
LEDs for TxD, RxD, LAN Link, LAN Speed |
| Back to Top |
| Power and Environment |
Power requirements |
5V DC, 150mA (200mA initial peak) |
Power supply Adapter |
5V DC, 2A |
Dimensions |
45 x 82 x 26 mm (W x L x H)
45 x 85 x 26 mm (W x L x H) with DB9 connector |
Operating Temp. |
0°C - 70°C |
Storage Temp. |
-20°C - 90°C |
Case |
Molded plastic |
Weight |
70g |
| Back to Top |
| Approvals |
EMC |
FCC Class A, CE Class A |
Environment |
RoHS |
| Back to Top |
| Ordering Information |
Art.No |
659 |
Product Name |
NetCom Mini P |
Packing list |
. NetCom Mini P
. Power supply adapter 5V DC, 2A
. CD-ROM with Driver and configuration software
. Printed Quick Installation Guide
|
Optional Accessories |
. 9PF-9PF - Null-Modem adapter converts DB9 male to DB9 female
. VS-POE 10 - Power over Ethernet Splitter, IEEE 802.3af compliant (15W max.)
|
| Back to Top |
|
| |
