VScom USB-COM-I-TB
(Replaced by USB-COM Plus Mini)

USB to 1x RS422/485 port (Terminal Block)

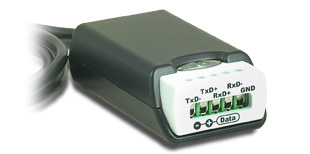

Vscom USB-COM-I-TB, an USB to RS422/485 serial port converter terminal block connector
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

Industrial serial ports on USB connect RS-422 and RS485 devices, used in industrial environment. With RS-485 the data direction is controlled by the port, without further action from the software.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.

Features

  • Phased Out, no longer available
  • RS422/485 Terminal Block
  • Speed up to 3000 kbps
  • no external power supply

Back to Top
Specifications
Hardware Specifications
  Serial interface
1 x RS422/485 configured by DIP switch
Speed up to 3000 kbps
Connector Terminal Block
  Available Modes
RS422 full duplex
RS485 4-wire, full duplex
RS485 2-wire, half duplex, with echo
RS485 2-wire, half duplex, without echo
  Signals
RS422: Tx+/-, Rx+/-, GND
RS485 4-wire: Tx+/-, Rx+/-, GND
RS485 2-wire: Data+/-, GND
  USB Interface
USB 2.0
Bus powered
No external power supply
  Driver
Windows 2000 to Windows 10 (x86 and x64)
Windows Server 2000 to 2012 (x86 and x64)
Also Windows 98/SE/ME.
Linux (Kernel 2.6 built-in, 2.4 available)
Back to Top
Ordering Information
  Part Number
630
  Product Name
VScom USB-COM-I-TB
  Packing list
VScom USB-COM-I-TB Adapter
USB cable 0,9m integrated
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
