Products >> USB to Serial

VScom USB-2COM-M
(Replaced by USB-2COM ECO)

USB to 2 x RS232 port (DB9, male)

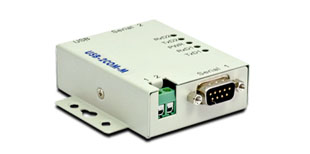

Vscom USB-2COM-M, an USB to 2 x RS232 serial port converter DB9 connector
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.

Features

  • Phased Out, no longer available
  • Metal case
  • DIN-Rail mountable
  • RS232 DB9 male port
  • Speed up to 500 kbps
  • no external power supply

Back to Top
Specifications
Hardware Specifications
  Serial interface
2 x RS232
Connector 2 x DB9 male
Speed up to 500 kbps
Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  USB Interface
USB 2.0
Bus powered
No external power supply
  Driver
Windows 2000 to Windows 10 (x86 and x64)
Windows Server 2000 to 2012 (x86 and x64)
Linux (Kernel 2.6 built-in, 2.4 available)
Back to Top
Ordering Information
  Part Number
642
  Product Name
VScom USB-2COM-M
  Packing list
VScom USB-2COM-M Adapter
USB cable 0,9m
  Optional Accessories
DK 35A DIN-Rail mounting kit
9PF-9PF RS232 Null-Modem adapter, change male to female
  Dimensions
57×72×22 mm³ (W×L×H)
82×82×22 mm³ with DB9 connector and ears
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
