VScom USB-16COMi-RM
(Replaced by USB-16COM Plus)

USB to 16x RS232/422/485 port (DB9, male)

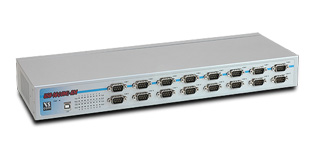

Vscom USB-16COMi-RM, an USB to 16 x RS232/422/485 serial port converter DB9 connector, rackmount chassis
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.

Features

  • Phased Out, no longer available
  • Metal case
  • Rackmount and DIN-Rail mountable
  • RS232/422/485 DB9 male ports
  • Speed up to 500/3000 kbps
  • built-in power supply

Back to Top
Specifications
Hardware Specifications
  Serial interface
16 x RS232/422/485 configured by DIP switch
Connectors 16 x DB9 male
  Speed
RS232: up to 500kbps
RS422: up to 3Mbps
RS485: up to 3Mbps
  Available Modes
RS232 full duplex
RS422 full duplex
RS485 4-wire, full duplex
RS485 2-wire, half duplex, with echo
RS485 2-wire, half duplex, without echo
  Signals
RS232: TxD, RxD, RTS/CTS, DTR, DSR, DCD, RI, GND
RS422: Tx+/-, Rx+/-, RTS+/-, CTS+/-, GND
RS485 4-wire: Tx+/-, Rx+/-, GND
RS485 2-wire: Data+/-, GND
  USB Interface
USB 2.0
Self powered
Built-in power supply 110-240V AC 47-63 Hz, 25VA
  Driver
Windows 2000 to Windows 10 (x86 and x64)
Windows Server 2000 to 2012 (x86 and x64)
Linux (Kernel 2.6 built-in, 2.4 available)
Back to Top
Ordering Information
  Part Number
650
  Product Name
VScom USB-16COMi-RM
  Packing list
VScom USB-16COMi-RM Adapter
USB cable 0,9m
Power cord
  Optional Accessories
9PF-9PF RS232 Null-Modem adapter, change male to female
  Dimensions
429×147×44 mm³ (W×L×H)
451×152×44 mm³ with DB9 connector and ears
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
