VScom USB-16COM-M CBL
(Replaced by USB-16COM Plus 232)

USB to 16x RS232 port (DB62, female)

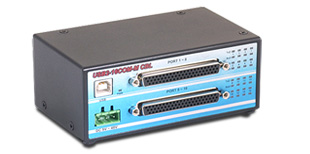

Vscom USB-16COM-M CBL, an USB to 16 x RS232 serial port converter DB62 connector, including octopuscable DB62 to 8 x DB9
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.
USB-16COM-M CBL uses a small case due to the high-densitiy DB62 combi connectors for the serial ports. Mounted even in narrow environment, it connects to serial devices via an octopus cables or connection boxes.

Features

  • Metal case
  • DIN-Rail mountable
  • RS232 2x DB62 female combi-ports
  • Speed up to 500 kbps
  • USB 2.0
  • 9-30V DC power adapter

Back to Top
Specifications
Hardware Specifications
  Serial interface
16 x RS232
Connector 2 x DB62 female, Adapters available
Speed up to 500 kbps
Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  USB Interface
USB 2.0
Self powered
External power supply 9-35V DC
Connected by terminal block.
Adapter 12V included.
  Driver
Windows 2000 to Windows 11 (x86 and x64)
Windows Server 2000 to 2012 (x86 and x64)
Linux (Kernel 2.6 built-in, 2.4 available)
Back to Top
Ordering Information
  Part Number
653
  Product Name
VScom USB-16COM-M CBL
  Packing list
VScom USB-16COM-M CBL Adapter
USB cable 0,9m
Power adapter
  Optional Accessories
DK 35A DIN-Rail mounting kit
DB62 to … Octopus cables and connection boxes
  Dimensions
124×78×51 mm³ (W×D×H)
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
