VScom OPT8B-M

RS232 Connectionbox with 8x DB25 male

VScom OPT8B-M
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product

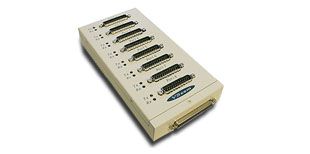

View Larger Image
Features

  • Phased Out, no longer available
  • 8 Ports RS232 connection box
  • Metal case
  • DB 25 male connectors
  • Dimension 200 x 100 x 35mm
  • 150cm DB 62 to DB 62 connection cable

Back to Top
Specifications
  Connector type
8 x RS232, DB25 male
  Signals
RxD(3), TxD(2), CTS(5), RTS(4), DTR(20), GND(7), DCD(8), DSR(6)
  Control LED
TxD, RxD monitoring LEDs for each port
  cable
150cm DB62 to DB62 connection cable
  Dimensions
200mm x 100mm x 35mm
Back to Top
Ordering Information
  Part Number
403
  Product Name
VScom OPT8B-M
  Packing list
VS OPT8B-M connection Box
150cm DB62 to DB62 connection cable
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
