VScom 200Ei PCIex

2x RS232, RS422/485

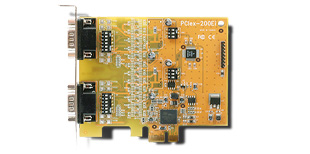

VScom 200Ei PCIex, a 2 Port RS232, RS422/485 PCI Express x1 card, 16C950 UART
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image
  BUY

The VScom 200Ei PCIex is designed for RS232, RS422/485 industrial communication. It supports 2 independent RS232, RS422 or RS485 ports. Each port can be configured separate.
Available modes : RS232, RS422 fullduplex
RS485 full duplex (4 wire)
RS485 half duplex (2 wire) with and without echo.
In RS485 modes applications enable transmission by simply sending data.

This is done by ART (Automatic Receive Transmit control) intelligence.
The Transmitter is disabled exactly with the end of the last character sent. No modification is necessary in programs.
In addition, hardware flow control and built-in termination resistors guarantee data integrity.
All of these features make VScom 200Ei PCIex suitable for harsh industrial applications.

Read the News Article…

Features

  • PCI Express x 1
  • 2x RS232, RS422/485
  • RS485 ART (Automatic Receive Transmit control)
  • RS485 in 3 operation modes
  • Compact board size (half-size)
  • Built-in termination resistors
  • Drivers for Windows 2000 to 7/2008R2
