VScom 200E PCIex
(Replaced by VScom 200E v4 PCIex)

2x RS-232

VScom 200E PCIex, a 2 Port RS232 PCI Express x1card, 16C950 UART
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

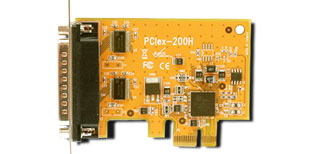

The VScom 200E PCIex is an add-on card for PCI Express, providing two serial ports. These high speed serial ports with their 128 byte long FIFO are best for high speed communication, even in heavy loaded systems. Many unique features reduce the system load. They also allow very unusual speed settings such as 500.000bps.

The extra bracket allows to place the card in Low Profile cases.

Read the News Article…

Features

  • Phased Out, no longer available
  • PCI Express x1
  • 2x RS232
  • 16C950 (128 Byte FIFO)
  • 921 kbps
  • PCI Plug and Play
  • Drivers for Windows 2000 to 7/2008R2
  • Extra bracket for Low Profile cases

Back to Top
Specifications
Hardware Specifications
  Ports
2x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)
  UART
2x 16C950 (128 Byte FIFO)
  Address
Plug and Play
  Interrupts
PCI Plug and Play, only one interrupt per card
  Speed
max. 921 kbps
  Bus interface
PCI Express x1
  Connectors
1x DB25, adapter cable 2 x DB9 male
  Low Profile
Extra bracket for alternative mounting
  Temperature
0°C - 55°C
Back to Top
High Performance Features
  FIFO
adjustable FIFO length, 1 up to 128 Bytes
separate adjustable Rx and Tx
  Handshake
RTS / CTS
DTR / DSR
Xon / Xoff
all handshake automatic on Chip
  Speed
1 bps up to 921 kbps
unusual Baudrates possible
Multiplication factor for legacy applications
  Access
high speed access via Memory
  UART
UART emulation of 8250 up to 16850
Back to Top
Operating Systems
  Windows XP up to 7
VScom high performance serial driver, x86 and x64 Editions
  Server 2003 up to 2008 R2
VScom high performance serial driver, x86 and x64 Editions
  Linux
Kernel 2.6.35 and up: built-in support
Back to Top
Ordering Information
  4502
VScom 200E PCIex
Back to Top
Packaging
  Packing list
VScom 200E PCIex card
Adapter cable 2 Ports RS232 DSUB 9 male
Bracket for Low Profile cases
CD, English documentation
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
