Products >> USB to Serial

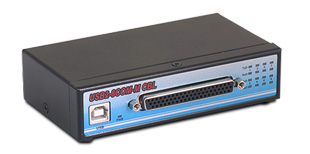

VScom USB-8COM-M CBL
(Replaced by USB-8COM ECO)

USB to 8 x RS232 port (DB62, female)

Vscom USB-8COM-M CBL, an USB to 8 x RS232 serial port converter DB62 connector, including octopuscable DB62 to 8 x DB9
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.
USB-8COM-M CBL uses a small case due to the high-densitiy DB62 combi connector for the serial ports. Mounted even in narrow environment, it connects to serial devices via an octopus cable or a connection box.

Features

  • Metal case
  • DIN-Rail mountable
  • RS232 DB62 female combi-port
  • Speed up to 500 kbps
  • powered by USB

Back to Top
Specifications
Hardware Specifications
  Serial interface
8 x RS232
Connector 1 x DB62 female, Adapters available
Speed up to 500 kbps
Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  USB Interface
USB 2.0
Bus powered
No external power supply
  Driver
Windows 2000 to Windows 10 (x86 and x64)
Windows Server 2000 to 2012 (x86 and x64)
Linux (Kernel 2.6 built-in, 2.4 available)
Back to Top
Ordering Information
  Part Number
652
  Product Name
VScom USB-8COM-M CBL
  Packing list
VScom USB-8COM-M CBL Adapter
USB cable 0,9m
  Optional Accessories
DK 35A DIN-Rail mounting kit
DB62 to … Octopus cables and connection boxes
  Dimensions
123×75×30 mm³ (W×D×H)
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
