VScom SER-485 PRO
(Replaced by SER-485 and SER-485 Mini)

bidirectional Converter RS232 to 422/485

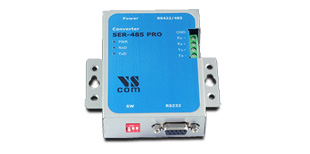

VScom SER-485 PRO
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image
The SER-485 PRO is an adapter to convert bidirectional signals from RS232 to RS422 and RS485 in industrial environments. In RS485 mode the data direction is managed by the bitrate adaptive function of ART (Automatic Receive Transmit control). ART analyzes the data in real-time, and adapts to the setup of the RS232 port.
All options and parameters of SER-485 PRO operation are configured by software, controlled via an easy-to-use menu structure. This menu is accessed via standard terminal programs. The SER-485 PRO is a NO Jumper type of device.
With SER-485 PRO often used operation modes are selected by simple DIP switches. The full versatility is controlled by the built-in software configuration menu. The behaviour of RS422 and various options of RS485 are selected by an easy-to-use menu structure.
The internal termination and BIAS (polarization) resistors allow to prepare the RS485 signals for connection to customers networks. These internal resistors are activated by relays, controlled by the configuration menu. There is no need to open the case for configuration.
The VScom SER-485 PRO replaces the Converter VScom SER-485 Lite.
Features

  • Converts RS232 <=> RS422/485
  • RS485 bitrate adaptive ART (Automatic Receive Transmit control)
  • RS422 with Hardware handshake
  • Full Software Configuration, NO Jumpers. Quick configuration for standard modes
  • Flexible power 9-30V DC
  • LED indicator for Power and signals
  • Internal Termination and BIAS by software
  • DIN-Rail mountable

Back to Top
Specifications
Hardware Specifications
  RS232
DTE/DCE selected by DIP
  RS485
Automatic Receive Transmit control (ART)
Baudrate adaption in real time
  Line adjust
Built-in Termination and Polarization (BIAS) resistors
  Operation Modes
RS422 with hardware handshake
RS485 by ART, RTS or DTR
RS485 Half- and Full-Duplex
Two basic modes selected by DIP switch
  Cablelength
max. 1200 m
  Speed
max. 1Mbps
max. 250kbps with ART
  Connectors
RS232 1x DB9 female
RS485/RS422 1 x DB9 male plus Terminal Block (5 c-clamps)
Back to Top
Software Configuration
  Configuration Menu
Various parameters of signal conversion are defined via an easy-to-use menu interface, access is via standard terminal programs (Hyperterminal, miniterm, ...)
  Operation Modes
RS422
RS485 by RTS
RS485 by DTR
RS485 by ART (Automatic Receive Transmit control)
  ART options RS485
Transmit/Receive change as quick, average, standard
  Wiring
RS422 (4-wire)
RS485 Full Duplex (4-wire)
RS485 Half Duplex (2-wire) with Echo
RS485 Half Duplex (2-wire) no Echo
  Termination
RS422/485 line termination 120Ω by relay, controlled via software configuration
  RS485 BIAS
BIAS (polarization) by special drivers, controlled via software configuration
Back to Top
Power and Environment
  Power requirements
9-30V DC, 600mW
  Power supply Adapter
12V DC, 500mA
  Dimensions
67×90×27 mm³ (W×L×H)
  Operating Temp
0°C - 60°C
  Storage Temp
-20°C - 85°C
  Case
SECC sheet metal (1mm)
  Weight
150 g
Back to Top
Ordering Information
  417
VScom SER-485 PRO
  418
VScom SER-485 PRO-SI
  Packing list
VScom Converter SER-485 PRO
Power Supply
English Documentation
  Option
DIN-Rail mounting clamp
