VScom 400L SP UPCI

4x RS-232

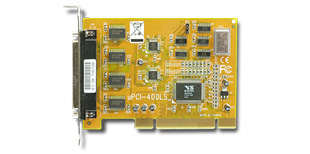

VScom 400L SP UPCI, a 4 Port RS232 PCI card, 16C550 UART
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

The L-series is an economic solution for standard applications. The serial ports are based on a 16C550A UART with 16 byte FIFO. The eightfold maximum speed allows some irregular transmission rates.

Features

  • Phased Out, no longer available
  • Universal PCI 3.3 / 5.0V
  • 4x RS232
  • UART 16550 (16 Byte FIFO)
  • Speed 921 kbps
  • PCI Plug and Play
  • IRQ Interrupt sharing, only one Interrupt per card
  • Drivers for Windows 95 to 7/2008 R2
  • Software compatibel with DOS, Windows 3.11, OS/2, Linux and div. Unix

Back to Top
Specifications
Hardware Specifications
  Ports
4x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)
  UART
4x 16550 (16 Byte FIFO)
  Address
Plug and Play
  Interrupts
PCI Plug and Play, only one interrupt/card
  Speed
max. 921 kbps
  Bus interface
Universal PCI 3.3V / 5.0V
  Connectors
1 x DB37 female
  Size
L120mm x H89mm
  Temperature
0°C - 55°C
Back to Top
Performance Features
  FIFO
FIFO size 16Byte
adjustable Rx 1,4,8,14Bytes Tx 1 up to 16Bytes
  Handshake
RTS / CTS
Xon / Xoff
  Speed
1bps up to 921kbps
Multiplication factor for legacy applications
  UART
UART emulation of 8250 and 16450
Back to Top
Operating Systems
  Windows 2000 up to 7
VScom high performance serial driver, x86 and x64 Editions
  Server 2000 to 2008 R2
VScom high performance serial driver, x86 and x64 Editions
  Windows NT 4.0
VScom high performance serial driver
control panel applet
  Windows 95, 98, SE, ME
VScom high performance serial driver
  DOS
virtuell address driver and compatibility tools
real DOS Com port emulation
  OS/2
Supported by COM16 driver in recent system releases
Third party serial driver SIO.SYS available
  Linux
Kernel 2.6 and up: built-in support
Previous kernel: VScom high performance real tty driver
  div.UNIX
configuration instructions
Back to Top
Ordering Information
  4469
VScom 400L UPCI
Back to Top
Options
  756
VS Spider-4/9 connection cable DSUB 37 on 4 x DSUB 9
  755
VS Spider-4/25 connection cable DSUB 37 on 4 x DSUB 25
Back to Top
Packaging
  Packing list
VScom 400L SP UPCI card
Cable DSUB 37 to 4xRS232 DSUB 9 male
CD, English documentation
Back to Top
