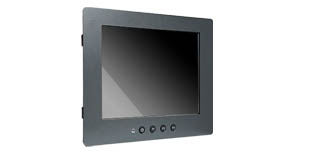

VS-860 RISC based Touch Panel PC

8" RISC PPC, Fanless. ARM Cortex-A8 600MHz

VS-860 RISC Panel PC with 8-inch resistive Touch, supports Linux and Windows CE6
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image
  BUY

The VS-860 is an industrial embedded RISC Panel PC based on ARM Cortex-A8. It features an integrated 8" display panel with a resistive touch function. The great variety of interfaces offered are the basis for a modern HMI device. Qualities such as low power consumption (22W typical includes display), an extended temperature range (-10°C to 50°C) and a wide range power supply (9 — 30V DC) make it an ideal system for industrial automation.

Bright Touchscreen

The contrast ratio and high luminance (1000 cd/m²) of the integrated TFT display are highly suitable for sunlight-readable applications. The 4:3 aspect ratio of the panel is compatible with most of existing HMI applications.

Easy-to-use starter kits

The VS-860 RISC Panel PC runs Linux flavored distributions on an ARM core as operating system. In addition, a prepackaged bootable SD card is provided: The Debian GNU/Linux installed. This comes as a starter kit with further accessories and documentation.

Booting options and BSPs

The VS-860 can boot from the internal NAND flash or SD-card. The NAND flash is a robust boot medium capable of withstanding power cuts and vibrations. The SD-cards have the advantage of providing arbitrarily large storage amounts. The Buildroot BSP provides a small footprint and comfortably fits into the NAND storage, whereas the Debian is best used on the SD-card.

Rich connectivity

The system allows extension with broadband GSM/3G/4G-Modems for installation on mobile internet bases. WLAN802.11b/g/n (joined with Bluetooth) is available as a common option; furthermore, two locations for SMA-antenna sockets are provided. The great variety of interfaces like LAN, USB, RS232/422/485 serial ports and CAN-Bus enable VS-860 to act like a powerful gateway between networks and various industrial devices and field buses. At the same time the display allows for HMI operation.


Keywords: OnRISC SOC ARM Cortex-A8 RISC, Touch Panel Linux Windows CE6

Compact RISC Touch Panel PC supporting Linux and Windows CE6
Features

  • Ready-to-run Debian GNU/Linux
  • 32-bit ARM Cortex-A8 600MHz
  • 256MB DDR2 / 256MB NAND Flash
  • 8" Panel, resistive Touch, sunlight readable
  • Multiple Connectivity Interfaces
  •   2 x LAN ports
  •   2 x USB 2.0 Host and 1 x USB OTG
  •   2 x RS232/422/485 / 1 x CAN-BUS
  •   1 x Audio In/-Out
  •   1 x SD-card slot bootable / 1 x CFAST-Slot
  •   1 x mPCIe / SIM card slot for Wifi or 3G/4G-Modems
  • Options: WLAN 802.11b/g/n / Bluetooth 2.1 EDR
  • Low Power, fanless
  • IP65 small size case
  • Wall and VESA 75 mounting

Back to Top
Specifications
Software Specifications
  Linux
Debian Lenny available as ready-to-run SD card image
Back to Top
System
  Hardware
ARM Cortex-A8 32-bit RISC CPU, 600 MHz
256 MB SDRAM (512 MB option)
256 MB NAND Flash (512 MB option)
Real time clock with battery backup (CR2032)
Watchdog Timer
  Mass Storage
Internal NAND Flash Memory
SD-card Reader SD 2.0 / SDHC
CFast-Slot Type II, SATA connection
  Network
2x Fast Ethernet
Option: WLAN 802.11b/g/n
Option: Bluetooth 2.1 EDR
  Display & Touch
8" Panel 800×600
Resistive Touch function
1000 cd/m², outdoor sunlight readable
  Audio
Audio-In and -Out Jacks
  Expansion Slot
1x miniPCI Express, USB 2.0 signals (for GSM/3.5G, GPS, …)
SIM Slot for GSM/3.5G modems in miniPCIe slot
  Serial Interfaces
2x USB 2.0 as Host
1x USB 2.0 OTG
1x Console Port RS232, up to 115200 bps
2x RS232/422/485 up to 3.0 Mbps
1x CAN Bus up to 1.0 Mbps
  LED
1x Power on Front
LAN: 2x 10M/Link, 100M/Link, integrated in RJ45 connector
  Buttons
1x Power On/Off
3x free for user application
Back to Top
Display, Touch, Audio
  Display Size
8 inch, in metal case
  Technology
TFT-LCD Display
  Luminance
1000 cd/m²
  Contrast ratio
400 : 1
  Resolution
800 × 600
  Aspect ratio
4 : 3
  Touchscreen
Resistive Touch function
  Audio
Analog Audio -In and -Out
Back to Top
Serial Ports
  No. of Ports/Type
2 × RS232/422/485 selected by software or by DIP-switches
Highspeed UART, 128 Byte FIFO
  Connector
DB-9 male
  Operating Modes
RS232
RS422 full duplex              (120Ω on/off)
RS485 4 wire, full duplex    (120Ω on/off)
RS485 2 wire, half duplex   (120Ω on/off)
  Configuration
One DIP switch per port can set operating mode and RS422/485 termination
Software can override the operating mode for each port
No High/Low biasing resistors needed
  Signals
RS232: TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND
RS422: Tx+/-, Rx+/-, GND
RS485 4 wire: Tx+/-, Rx+/-, GND
RS485 2 wire: Data+/-, GND
  RS485 Data Direction control
by ARTc (Automatic Receive Transmit control)
  Data bits
5, 6, 7, 8
  Stop bits
1, 2
  Parity
None, Even, Odd, Mark, Space
  Flow Control
RTS/CTS, XON/XOFF
  Baudrate
RS232: 200 bps to 921.6/1000 kbps
RS422/485: 200 bps to 3.7Mbps
Supports non-standard baudrates
Back to Top
CAN Bus
  No. of Ports/Type
1 × CAN Bus
  Connector
3-pin terminal block
  Signals
CAN_H, CAN_L, CAN_GND
  Speed
CAN 2.0A / 2.0B up to 1 Mbit/s
  Transceiver
SN65HVD233 (Texas Instruments)
  Linux OS
Supports SocketCAN and unified VSCAN API
  CANopen
Open source CANfestival framework fully implements CANopen functionality.
Back to Top
Wireless interface (option)
  Standards
2.4GHz Radio, supports IEEE Std. 802.11b/g/n
  WLAN Modes
Access Point (AP) or Client (Station)
  TX Power
802.11b:
Typ. 15.5dBm ±1.5 dBm @ 1Mbps (DSSS)
Typ. 15.5dBm ±1.5 dBm @ 11Mbps (OFDM)
802.11g:
Typ. 15.6dBm ±1.5 dBm @ 6Mbps (CCK)
Typ. 13.5dBm ±1.5 dBm @ 54Mbps (OFDM)
802.11n:
Typ. 13.4dBm ±1.5 dBm @ 6.5Mbps (OFDM)
Typ. 13.3dBm ±1.5 dBm @ 150 Mbps(OFDM)
  RX Sensitivity
802.11b:
-95.6dBm @ 1Mbps, -88dBm @ 11Mbps
802.11g:
-91.3dBm @ 6Mbps, -74.2dBm @ 54 Mbps
802.11n:
-88.8dBm @ 6.5Mbps (20 MHz), -72dBm @ 72.2Mbps (20 MHz)
  Transmission Rate
802.11b: 11Mbps
802.11g: 6 to 54Mbps
802.11n: 6.5 to 150Mbps
  Transmission Distance
Up to 100m in open areas
  Wireless security
WEP
WPA
WPA2
WPA2-Enterprise (IEEE 802.1X/RADIUS)
  Antenna Connector
RP (Reverse-Polarity) SMA
  Bluetooth
Bluetooth 2.1 EDR
  BT Antenna
shares antenna with WLAN function
Back to Top
Power Requirements
  Input Voltage
9 — 30V DC
  Power Consumption
0.9A @ 12V minimal
1.8A @ 12V typical, plus devices on USB
  Connector
2-pin Terminal Block
Back to Top
Housing and Mounting
  Case
0.8mm sheet metal
  Weight
w/o box 1.40kg; w/h box 1.85kg
  Dimensions
219×44×179 mm³ (W×L×H)
  Mounting
Panel Wall Mount
VESA 75×75
Back to Top
Environmental Data
  Operating Temp
−10°C — 50°C
  Storage Temp
−20°C — 70°C
  Ambient Humidity
10-85% non-condensing
Back to Top
Standards
  Certifications
CE, FCC
  EMI
EN 55022 Class B
EN 61000-3-2: Limits of harmonic current emissions
EN 61000-3-3: Limitation of voltage changes
47 CFR FCC Part 15 Subpart B
  EMS (EN 55024)
EN 61000-4-3: Radiated RFI
EN 61000-4-4: Electrical Fast Transient
EN 61000-4-5: Surge
EN 61000-4-6: Induced RFI
EN 61000-4-8: Power Frequency Magnetic Field
EN 61000-4-11: Power supply dips
  ESD
EN 61000-4-2 4kV contact 8kV air for USB and Ethernet
Back to Top
MTBF (Mean Time Between Failures)
  MTBF
soon available
  Standard
Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7
Back to Top
Warranty
  Warranty Period
2 years
Back to Top
Ordering Information
  6850
VS-860
  6851
VS-860 WLAN (with Bluetooth and Wireless LAN)
Back to Top
Options
  6031
Power adapter 110-230V AC to 12V @1A, DC, EU plug
  6034
Power adapter 110-230V AC to 12V @1A, DC, US plug
  6855
Starter Kit Linux
4GB microSD card for Linux inserted
Power adapter 12V @ 1A
Adapter cable for console port
Documentation and Development Software on DVD
  3304
GSM/UMTS mPCIe card for 3G modem
  3306
GSM/UMTS/LTE mPCIe card for 3G/4G modem
Back to Top
Packaging
  Packing list
VS-860 RISC Panel PC
2-pin Terminal Block for power supply
3-pin Terminal Block for CAN Bus
4 × hooks for Panel Mount
Antenna (WLAN model only)
Back to Top
