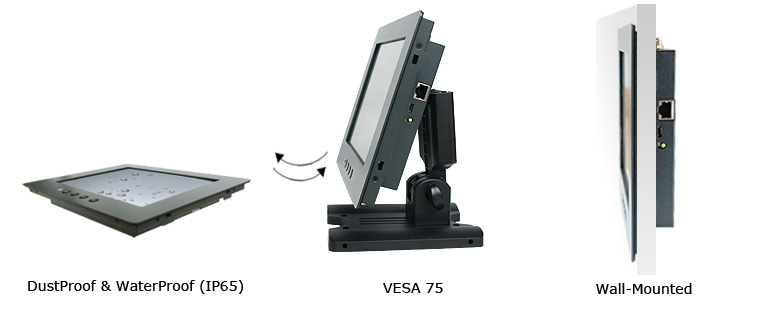

VS860 is a 8" high brightness Panel PC based on ARM Cortex CPU, with rich interfaces for deployment in different industrial application fields. Ready to run under Debian Linux or Windows CE 6.0.





Powered by ARM Cortex-A8

Fanless Design, Low Power Consumption


High Brightness

Brightness : 1000 cd/m2
Resolution : 800 x 600 pixel
Interaction : Resistive Touch
Size : 8"


Multiple communication

VS-860 offers a rich interfaces, such as CFAST-Slot, SD card slot, Fast Ethernet LAN ports, SIM Card Slot, USB 2.0 OTG, USB 2.0 Host, CAN Bus, Serial Ports RS232/422/485, Audio-In/-Out, Console Port, MiniPCI Express-Slot, Wireless, Bluetooth.

Wireless LAN
Wireless 802.11b/g/n (Optional)

Bluetooth
Bluetooth 3.0 (Optional)

 3G/GPRS (Slot)
3G/GPRS via mPCIe
SIM Card Slot

  CAN Bus
1MBit/s high speed interface to CAN networks.
API and CAN-Library included


Ready to Run

Ready to run under Debian Linux or Windows CE 6.0.


Ready to run full-featured Debian GNU/Linux on ARM operating system. This system is usually installed on the integrated NAND Flash memory, to operate without extra mass storage.

External storage offered is a SD card to place in the card-reader, and an additional CFast card. The operating system may also start from the SD card. With Debian's repository database it is easy to install and update the free software on the VS-860.
RISC-based Panel PC

* Available Models * Inquiry this product
