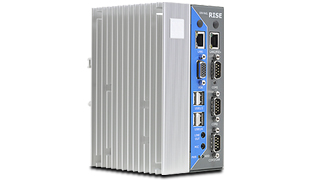

| Features |
- Intel Atom Z530P 1.6 GHz
- 533MHz FSB
- 512 MB DDR2 SDRAM
- Express Card 34 slot (USB interface)
- HD Audio, speaker and microphone
- HDD/SSD drive bay
- 2 x Giga LAN
- Digital and Analogue I/O
- Option: WLAN, Bluetooth, GPS, 3G/GSM
- Option: CAN Bus 1Mbit/s
- Option: powered over Ethernet PoE+, 802.3at
|
 Back to Top |
| Specifications |
| Chassis |
Construction |
Full size stainless steel, Aluminum cooling plate with fins |
Mounting configuration |
DIN Rail |
Cooling system |
Passive heatsink, fanless |
LED indicator |
Power on/off, HDD access, LAN access |
Expansion slot |
* 1 x Mini PCI Express, PCIe x1, USB signals 2.0 High Speed only
* 1 x Express Card 34, USB 2.0 High Speed only |
Dimensions |
163 x 111 x 83 mm |
Power switch |
Bottom side |
Reset Switch |
Bottom side |
| Back to Top |
| Hardware |
Processor |
Intel Atom Z530P @ 1.6GHz, 533MHz FSB |
Cores |
2 by Hyperthreading |
CPU socket |
Q7 module |
BIOS |
Phoenix - Award BIOS
|
Chipset |
US15WP |
| Back to Top |
| Memory |
Memory Type |
DDR2 512MB |
Memory Socket |
Soldered onto Q7 module |
BIOS |
8MBit SuperFlash |
| Back to Top |
| Video |
VGA Controller |
Graphics Memory Controller Hub integrated in US15W |
Video RAM |
Up to 128MB frame buffer |
Interface |
VGA |
Resolution |
Up to 1280 × 1024 / 32bit |
Extras |
MPEG-2, MPEG-4, VC1, WMV9 and H.264 video decoding acceleration |
| Back to Top |
| Integrated Devices |
HDD/SSD Bay |
1 x 1.8" SATA HDD or SSD |
CF card slot |
1 x CF card in True IDE mode
|
HD-Audio |
Mic-in
1 x Speaker-out |
Real Time clock |
Standard |
Keyboard/Mouse |
Connect at USB
Internal pin header for PS/2 Keyboard and Mouse |
| Back to Top |
| Connectivity |
LAN |
2 x RJ45 GigaLAN (Marvell 88E8057) support PXE boot |
UBS |
4 x USB 2.0, support boot function |
VGA |
1 x 15-pin connector |
Com Ports |
* 2 x RS232 DB9 male, max. 115.200bps
* 1 x RS232 DB9 male, max. 500.000bps
* 1 x RS422/485 on terminal block |
RS422/485 |
* Up to 1 Mbit/s (theor. 12 MBit/s)
* RS422 Full-Duplex, RS485 bus mode configured by DIP switch
* RS485 Automatic Transceiver control
* Signals on Terminal Block |
HD-Audio |
Line-in (Mic-in)
Line-out ear-jet connectors |
Digital I/O |
Terminal Blocks on Top and Bottom side
4 x Output
4 x Input
2 x Counter
2 x ADC
1 x I²C |
CAN Bus |
CAN bus is realized in the RISE 3310 model |
| Back to Top |
| Power Supply |
Power Input |
DC 10-30V |
Power Consumption |
Min 17W |
| Environment |
Operating Temp. |
−20° to +60°C |
Storage Temp. |
−20° to +80°C |
| Supported OS |
Microsoft |
Windows XP/XPE, Windows 7 |
Linux |
Kernel 2.4 / 2.6 / 3.x |
| Back to Top |
| Approvals |
EMC |
FCC Class A, CE Class A |
Environment |
RoHS |
| Back to Top |
| Ordering Information |
Art.No |
3880 |
Product Name |
RISE 3300 |
Packing list |
. RISE 3300 Embedded System
. Terminal blocks for Digital-I/O and Power supply
. CD-ROM with English documentation, drivers and tools
|
Optional Accessories |
. mPCIe module for Wireless LAN
. mPCIe module for Bluetooth
. Express card module for 3G/UMTS/HSDPA/GPRS/GSM
|
