OpenNetCom Service Board
Service board for special development purposes

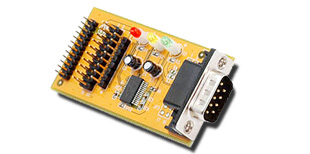

VSCOM - OpenNetCom service board
Features
Specifications
Ordering Information
Datasheet
Inquiry this product
View Larger Image

This service board is required for special development purposes. The board provides a 20 pin JTAG connector, easy access to the console port ttyS0, as well as programmable diagnostic LEDs. JTAG offers direct access to the ARM9 processor in OpenNetCom

Features
  • Extension for development system on OpenNetCom
  • Serial interface ttyS0 (console port)
  • Programmable Diagnostic LEDs
  • JTAG connector
  • This product is required for special development purposes
Back to Top
Specifications
  Service Connector
24-pin header (male), connect to Base board via flat ribbon cable
  Debug Connector
DSUB 9 male, RS232 level. Connects to console port ttyS0. Signals TxD, RxD, RTS, CTS
  JTAG Connector
20-pin header with JTAG signals for BDI2000
  Diagnostic LEDs
Red, Yellow and Green
  Dimensions
35 x 77 mm
Back to Top
Ordering Information
  Art.No
697
  Product Name
OpenNetCom Service Board
  Packing list
. OpenNetCom Service Board
. Flat ribbon cable
