OpenNetCom 123

1 port programmable serial device server

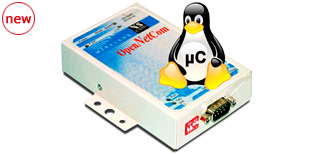

A new solution for remote data collection and processing within a very compact machine. This platform is equipped with ARM9 RISC-Processor, and provides Ethernet/WLAN connection plus one serial port with high speed UART 16C950 (128Byte FIFO).

As operating system the GPL Linux distribution µCLinux offers a broad range of freeware tools and total control to the experienced customer and the freedom of software development as for any other Linux-PC.

With gcc-toolchain users can develop their application from remote, upload by FTP and debug subsequently. Recovering factory configuration is ensured by write-protected RedBoot partition.

  Processor

ARM 9 166 MHz

  Memory

16MB SDRAM, 2MB Flash

  UART Controller

16C950C (128Byte FIFO) or compatible

  Connector type

SMA-Reverse for WLAN antenna,
RJ45 for Ethernet,
DSUB 9 male for serial Port

  Ethernet

10baseT/100baseTX Autodetect and Auto-MDI(X)

  Wireless

IEEE 802.11b/g RaLink card (RT2560) with WEP and WPA protection

  Serial interface

RS232/422/485

  No. of port

1, Speed up to 1.843 Mbps

  Available Modes

RS232 full duplex
RS422 full duplex
RS485 4 wire, full duplex
RS485 2 wire, half duplex, with echo
RS485 2 wire, half duplex, without echo

  Signals

RS232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
RS422 Tx+/-, Rx+/-, GND
RS485 2 wire Data+/-, GND
RS485 4 wire Tx+/-, Rx+/-, GND

  RS485 Data control

Controlled by ART (Automatic Receive Transmit control) or RTS

  Speed

RS232: up to 921.6 kbps
RS422/485: up to 3.6 Mbps

  Digital I/O

3 internal signals @ 3.3V level

  Power requirements

9 - 30V DC input, 500mA @ 12V

  Power supply Adapter

12V, 1000mA, connected by Terminal block

  Dimension

73 x 115 x 27 mm (W×L×H)
101 x 121 x 27 mm with DB9 connector & DIN rail mounting kit

  Operating Temp

0°C - 60 °C

  Storage Temp

-20°C - 85°C

  Case

SECC sheet metal

  Weight

0.2kg

  RS485 Direction

ART (Automatic Receive Transmit control) for RS485

  User Settings

4 x Dip Switch can be read by Application

  WEP

64/128 bit encryption

  WPA

WPA-PSK/TKIP

  Bootloader

RedBoot™ Bootloader resides in write-protected partition. You can work directly with RedBoot, using a Service-Board with console port

  Filesystem

CramFS (Compressed ROM File System) for applications and libraries JFFS2 (Journalling Flash File System Ver2) for configuration and data storage

  Operating System

GPL Linux Distribution µClinux with Kernel 2.4 Includes many very small applications that satisfy most of user tasks

  Daemons

FTP- and Telnet-daemon

  Development

Application and Kernel compilation is done with cross-compiler (gnu-compiler toolchain on CD-ROM)

  Tools

There are several example programs

  EMC

FCC Class A, CE Class A

  Environment

RoHS

  Art.No

693

  Product Name

OpenNetCom 123

  Packing list

. OpenNetCom 123
. WLAN antenna
. Power supply adapter 12V, 1000mA
. CD-ROM: images, sources, tools
. English documentation

  Optional Accessories

. DK 35A - DIN-Rail mountig kit
. Service Board - Console Port, Diagnostic LEDs, 20pin JTAG
