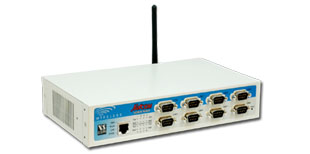

NetCOM 823RM WLAN

8 ports secure and wireless serial device server


NetCom 823RM WLAN is an industrial-strength network-based serial device server for connecting four RS232/422/485 device like CNC, PLC, weighting scale, scanner and other devices directly to a network running TCP/IP. This network may be based on 10/100Mbps Ethernet or Wireless LAN as of IEEE 802.11b/g.

NetCom 823RM WLAN provides completely secured communication for configuration and to the attached serial device.
In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without network access can also access remote serial device via adding NetCom devices to the existing serial port.

NetCom 823RM WLAN can be configured over Driver Panels, WEB Browser, serial Port, Telnet, SNMP and serves as a transparent serial channel without platform and distance limitation.

  Processor

ARM 9 166 MHz

  I/O controller

16C950 or compatible

  Memory

16MB SDRAM, 2 MB Flash

  Connector type

SMA-Reverse for WLAN antenna,
RJ45 for Ethernet,
DSUB 9 male for serial Port

  WLAN interface

Wireless LAN IEEE 802.11b/g, max. 54 Mb/s
Encryption WPA-PSK/TKIP, WEP-128, WEP-64
Infrastructure mode (uses an Access Point)
Ad-hoc mode (direct connection to a PC/Laptop)

  Ethernet interface

Auto-detecting 10BaseT/100BaseTx

  Protocols

TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, LPD, SNMP V1/2c/3, DNS, PPP

  Serial interface

RS232/422/485 selected by software or DIP-switch

  No. of port

8, Speed up to 3.6 Mbps

  Available Modes

RS232 full duplex
RS422 full duplex
RS485 4 wire, full duplex
RS485 2 wire, half duplex, with echo
RS485 2 wire, half duplex, without echo

  Signals

RS232 TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND
RS422 Tx+/-, Rx+/-, GND
RS485 2 wire Data+/-, GND
RS485 4 wire Tx+/-, Rx+/-, GND

  RS485 Data control

Controlled by ART (Automatic Receive Transmit control) or RTS

  Speed

RS232: up to 921.6 kbps
RS422/485: up to 3.6 Mbps

  Parity

None, even, odd, space, mark

  Data bits

5, 6, 7, 8

  Stop bits

1, 1.5, 2

  IRQ

None

  I/O address

None

  Driver mode

VScom Driver for Windows NT 4.0, 2000, XP, 2003 and Vista
Driver Mode creates virtual Com port

  TCP Raw Server

Raw data transfer over TCP/IP. Accepts multiple incoming connections

  TCP Raw Client

Raw data transfer over TCP/IP. Connects to multiple hosts or devices waiting for incoming connections

  TCP Advanced Settings

Special settings for user-defined modes

  UDP Mode

Raw data transfer by UDP. The NetCom is client and server at the same time. Timeout functionality, maximum packet size and a configurable trigger string define the packets of incoming data to send over UDP.

  Null Modem Tunnel

Connecting two NetCom used as virtual null modem cable

  IP Modem

The serial port emulates a standard modem. Operates by AT-commands, and dials to IP-Addresses instead of phone numbers. Windows "INF"-Driver provided for installation.

  Print Server

The NetCom accepts print jobs, and spools them to the attached serial printer. Operates as of RFC1197, similar to the line printer daemon in Unix-systems

  Power requirements

100 - 240V AC 47-63 Hz, 25VA

  Dimension

258 x 149 x 45 mm (W×L×H)
278 x 155 x 46 mm with DB9 connectors & DIN-RAIL mounting kit
19" 1HU Rackmount

  Operating Temp

0°C - 55°C

  Storage Temp

-20°C - 85°C

  Case

SECC sheet metal (1mm)

  Weight

1.9kg

  Installation

Configuration utility automatically finds NetCom devices in the network.

  Operating mode

Automatic mode switching between Driver and TCP RAW mode. With TCP Advanced settings it is possible to configure the NetCom for using it in multiple modes, so it decides automatically which mode should be used.

  Configuration

Configuration over Driver Panels, NetCom Manager, WEB Browser, serial console, Telnet, SNMP

  SNMP

special VScom MIB included

  ART

Automatic Receive Transmit control for RS485

  DNS

Domain Name Server support

  Serial interface

Serial Interface configurable with DIP switch and by software

  Firewall

Special precautions for Firewall environments

  Firmware

Firmware update over WEB Browser, Telnet, ComPort

  LEDs

LEDs for Power, serial Tx, Rx, Ethernet Link, Speed, WLAN

  Password access

Every capabilities of configuration use the same password including SNMP V3

  Secure communication

OpenVPN tunnel provides security on Ethernet and Wireless networks. The tunnel protects the configuration as well as all serial data. It is also usable across the Internet.
Strong encryption by AES up to 256 bit keys.

  WEP

Encryption with 64 and 128 bit for compatibility in simple installations

  WPA

Modern Wireless protection by WPA-PSK/TKIP

  EMC

FCC Class A, CE Class A

  Environment

RoHS

  Art.No

689

  Product Name

NetCom 823RM WLAN

  Packing list

. NetCom 823RM WLAN
. WLAN antenna
. Power cord
. 19" mounting kit
. CD-ROM with Driver and configuration software
. Printed Quick Installation Guide

  Optional Accessories

. DK 35A - DIN-Rail mounting kit
