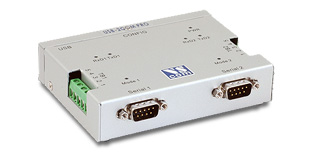

OpenRISC - Alekto LAN

RISC-CPU based industrial embedded computer with 5 LANs


The OpenRISC Alekto LAN is an ARM9-based RISC industrial embedded computer. The great variety of interfaces like LAN (with integrated switching hub), CF, USB, I²C, serial interface, digital I/O makes it easy to connect various industrial devices to the OpenRISC.

Compact dimensions and DIN Rail mounting capability make the OpenRISC to a space saving and flexible mounting industrial computer. It is feasible to be installed even in space limited environments. The internal microSD slot protects the system software against accidentally removal. The integrated switching hub provides connection for more devices with just one uplink cable.

Due to RISC based architecture the OpenRISC has very small power consumption, so fanless heat dissipation is possible. Working in a wide temperature range from -10°C up to 65°C the OpenRISC can be applied in under harsh industrial conditions. Therefore the OpenRISC is downright designed for industrial automation.

The embedded computer runs full-featured Debian GNU/Linux on ARM operating system Kernel 2.6. This system is installable on a microSD card to place in the internal card-reader, or on a CF card. With Debian's repository database it is easy to install and update the free software on the OpenRISC. The OpenRISC is capable to act directly as a software development host, WEB, Mail, Print and Database server or as a desktop computer with X11 window manager and many more. <...Read More >


  Processor

ARM9 32-bit RISC CPU, 166MHz

  Memory

64MB SDRAM

  Flash

4MB BIOS

  CF Slot

Type II, True IDE mode (accepts MicroDrives)
PIO-0 and PIO-3

  LAN

1 x Fast Ethernet Auto-MDI(X)
1 x Fast Ethernet Auto-MDI(X) with integrated 4-port switch

  USB

2 x USB 2.0 as Host

  Expansion Slot

MiniPCI (for WLAN)

  Console Port

RS232, up to 115200bps

  I²C

Max. 330kHz

  Time

Real time clock with battery backup (CR2032 in clip)

  microSD-Reader
  (Optional)

1 x internal as boot device, 7 MB/s
SD 2.0 / SDHC

  Other

Buzzer, Watchdog Timer

  Input/Output

8 input/output signals

  Signal configuration

Signal direction individually configurable as input/output

  Electrical

Input: TTL level (0.0 to 0.8V, 2.0 to 5.0V)
Output Source: 32mA@TTL High (2.0 to 5.0V)
Output Sink: 64mA@TTL Low (0.0 to 0.6V)

  IRQ

Maskable IRQ for input signals

  Connector type

Terminal block

  Serial Port

1 x RS232/422/485, software selectable
Highspeed UART 16C950, 128 Byte FIFO

  Available Modes

RS232
RS422 full duplex
RS485 4 wire, full duplex
RS485 2 wire, half duplex, with echo
RS485 2 wire, half duplex, without echo

  Signals RS232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

  Signals RS422

Tx+/-, Rx+/-, GND

  Signals RS485 2 Wire

Data+/-, GND

  Signals RS485 4 Wire

Tx+/-, Rx+/-, GND

  RS485 Data Direction
  Control

By ART (Automatic Receive Transmit control)
By RTS

  Speed

RS232: up to 500 kbps
RS422/485: up to 3.6 Mbps

  System

Power (red), WLAN (blue), IDE (yellow), User (green)

  WLAN button

Integrated LED (blue) for WLAN enable

  LAN

10M/Link, 100M/Link x 2 integrated in RJ45 connector

  Serial

TxD, RxD for each port

  Power Input

9 - 30V DC input

  Consumption

Max. 1.5A @12V

  Connector type

3-pin Power Terminal block

  Dimensions

157 x 106 x 53 mm (W x L x H)
167 x 112 x 53 mm including DB9 connectors and Terminal block

  Weight

0.35kg

  Construction Material

Aluminium, 1mm

  Mounting

DIN Rail, Wall mounting

  Operating Temp

-10°C - 65°C

  Storage Temp

-20°C - 85°C

  EMC

FCC Class A, CE Class A

  Environment

RoHS

  Linux

Debian GNU/Linux for ARM

  Kernel

2.6
Enhanced support for USB
Watchdog Timer supported

  Bootloader

Proprietary BIOS to install and boot OS from CF, microSD, USB Mass Storage Devices or over Network

  File System

JFFS2 (on-board flash), ext2 (preinstalled system on CF) and many more choices

  Protocol Stacks

ARP, PPP, CHAP, PAP, IPv4, ICMP, TCP, UDP, DHCP, FTP, SFTP, SNMP V1/V3, HTTP, HTTPS, NTP, NFS, SMB, SMTP, POP3, IMAP4, SSH 1.0/2.0, SSL, Telnet, PPPoE, OpenVPN, RFC2217

  System Utilities

Bash, telnet, ping, fpt, ssh, scp, netcat, socat, vim-tiny, e2progs, reiserfs, fdisk

  Supporting Services &
  Daemons

telnetd: Telnet server daemon
vsftpd: FTP server daemon
sshd: Secure shell server daemon
Apache2: Web server daemon
Courier: Mail server daemon
Samba: windows share daemon
sredird: RFC2217
pppd: dial in/out over srial port daemon
openssl: Open SSL
openvpn: virtual private network

  Complete Image

Pre-configured OS with applications to install on a 2 GB microSD or CF-card. It consists of tools gcc-3.3, vim-tiny services ssh, telnet, vsftpd (each as server and client) netcat and socat.
To speed up the boot process other software packages are not started automatically. To enable them please read the manual. Packages are:
Samba client and server
Apache2 web server
Courier mail server
NTP client and server
sredird RFC2217 server
WindowMaker desktop
xdm server (X11)
AbiWord
dillo web browser

  On-board Tool Chain

Gcc, Glibc, gdb, vim-tiny editor, gmake (develop on Alekto)

  Linux Tool Chain

Gcc, Glibc, gdb, Insight, gmake (develop on a Linux PC)

  Kernel

Kernel 2.6 sources

  Hardware

Driver sources for Alekto-specific hardware components

  Data Communication

USB (supports USB Mass Storage Devices, USB-to-Serial converters, Bluetooth)
UART 16C950, 128 Byte FIFO, RS232/422/485
I²C
WLAN 802.11b/g RaLink cards (RT2561) optional

  Others

Digital I/O
RTC
Buzzer
WLAN button
LED's
Watchdog Timer

  Art.No

6804

  Product Name

OpenRISC - Alekto LAN

  Packing list

. OpenRISC Alekto LAN
. Power supply adapter 12V, 1500mA
. Adapter cable for console port
. DVD-ROM-1: Debian on ARM
. DVD-ROM-2: system images, sources, tools
. English documentation
