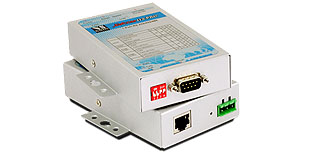

NetCOM 113 PRO
1 port secure serial device server |
 |
 |
|
|
NetCom 113 PRO is an industrial-strength network-based serial device server for connecting one RS232/422/485 device like CNC, PLC, weighting scale, scanner and other devices directly to a network running TCP/IP.
NetCom 113 PRO provides completely secured communication for configuration and to the attached serial device, this is implemented by openVPN tunnel software.
In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without network access can also access remote serial device via adding NetCom devices to the existing serial port. NetCom 113 PRO can be configured over Driver Panels, WEB Browser, serial Port, Telnet, SNMP and serves as a transparent serial channel without platform and distance limitation.
|
|
| Features |
- Controls 1 RS232/422/485 device located virtually anywhere
via Ethernet or Internet
- Secure encryption on Ethernet
- Lan interface 10BaseT/100BaseTx Ethernet
- Driver automatically finds NetCom devices in the network
- Configuration over Driver Panels, serial Port, Telnet, WEB Browser, SNMP
- Automatic mode switching between Driver and Raw Mode
- Supports TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS, PPP, openVPN
- Supports ART (Automatic Receive Transmit control)
- RS232/422/485 interface selectable by Switches and Software
|
 Back to Top |
| Specifications |
| Hardware |
Processor |
ARM 9 166 MHz |
I/O controller |
16C950 or compatible |
Memory |
16MB SDRAM, 2 MB Flash |
Connector type |
RJ45 for Ethernet,
DSUB 9 male for serial Port |
| Back to Top |
| Interface |
Ethernet interface |
Auto-detecting 10BaseT/100BaseTx |
Protocols |
TCP/IP, UDP, Telnet, PPP, DHCP, ICMP, HTTP, LPD, SNMP V1/2c/3, DNS |
Serial interface |
RS232/422/485 selected by software or DIP-switch |
No. of port |
1, Speed up to 3.6 Mbps |
Available Modes |
RS232 full duplex
RS422 full duplex
RS485 4 wire, full duplex
RS485 2 wire, half duplex, with echo
RS485 2 wire, half duplex, without echo |
Signals |
RS232 TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND
RS422 Tx+/-, Rx+/-, GND
RS485 2 wire Data+/-, GND
RS485 4 wire Tx+/-, Rx+/-, GND |
RS485 Data control |
Controlled by ART (Automatic Receive Transmit control) or RTS |
| Back to Top |
| Performance |
Speed |
RS232: up to 921.6 kbps
RS422/485: up to 3.6Mbps |
Parity |
None, even, odd, space, mark |
Data bits |
5, 6, 7, 8 |
Stop bits |
1, 1.5, 2 |
IRQ |
None |
I/O address |
None |
| Back to Top |
| Operating Modes |
Driver mode |
VScom Driver for Windows NT 4.0, 2000, XP and 2003, Vista
Driver Mode creates virtual Com port |
TCP Raw Server |
Raw data transfer over TCP/IP. Accepts multiple incoming connections |
Raw data transfer over
TCP/IP. Accepts
multiple incoming
connections |
Raw data transfer over TCP/IP. Connects to multiple hosts or devices waiting for incoming connections |
TCP Advanced Settings |
Special settings for user-defined modes |
UDP Mode |
Raw data transfer by UDP. The NetCom is client and server at the same time. Timeout functionality, maximum packet size and a configurable trigger string define the packets of incoming data to send over UDP |
Null Modem Tunnel |
Connecting two NetCom used as virtual null modem cable |
IP Modem |
The serial port emulates a standard modem. Operates by AT-commands, and dials to IP-Addresses instead of phone numbers. Windows "INF"-Driver provided for installation |
Print Server |
The NetCom accepts print jobs, and spools them to the attached serial printer. Operates as of RFC1197, similar to the line printer daemon in Unix-systems |
| Back to Top |
| Power and Environment |
Power requirements |
9 - 30V DC, 500mA @ 12V |
Power supply Adapter |
12V DC, 1A. Connected by Terminal block |
Dimension |
73 x 115 x 27 mm (W×L×H)
101 x 121 x 27 mm with DB9 connector & DIN rail mounting kit |
Operating Temp |
0°C - 60 °C |
Storage Temp |
-20°C - 85°C |
Case |
SECC sheet metal (1mm) |
Weight |
0.2kg |
| Back to Top |
| Special Features |
Installation |
Configuration utility automatically finds NetCom devices in the network |
Operating mode |
Automatic mode switching between Driver and TCP RAW mode. With TCP Advanced settings it is possible to configure the NetCom for using it in multiple modes, so it decides automatically which mode should be used |
Configuration |
Configuration over Driver Panels, NetCom Manager, WEB Browser, serial console, Telnet, SNMP |
SNMP |
special VScom MIB included |
ART |
Automatic Receive Transmit control for RS485 |
DNS |
Domain Name Server support |
Serial interface |
Serial Interface configurable with DIP switch and by software |
Firewall |
Special precautions for Firewall environments |
Firmware |
Firmware update over WEB Browser, Telnet, ComPort |
LEDs |
LEDs for Power, serial Tx, Rx, Ethernet Link, Speed |
| Back to Top |
| Security |
Password access |
Every capabilities of configuration use the same password including SNMP V3 |
Secure communication |
OpenVPN tunnel provides security on Ethernet. The tunnel protects the configuration as well as all serial data. It is also usable across the Internet.
Strong encryption by AES up to 256 bit keys |
| Back to Top |
| Approvals |
EMC |
FCC Class A, CE Class A |
Environment |
RoHS |
| Back to Top |
| Ordering Information |
Art.No |
675 |
Product Name |
NetCom 113 PRO |
Packing list |
. NetCom 113 PRO
. Power supply adapter 12V, 500mA
. CD-ROM with Driver and configuration software
. Printed Quick Installation Guide
|
Optional Accessories |
. DK-35A DIN-Rail mountig kit
|
| Back to Top |
| |
