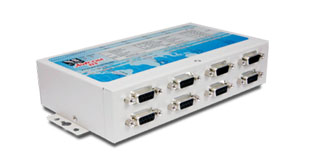

NetCom 813
8 ports serial device server |
 |
 |
|
|
NetCom 813 is an industrial-strength network-based serial device server for connecting eight
RS232/422/485 device like CNC, PLC, weighting scale, scanner and other devices directly to the
10/100Mbps Ethernet network running TCP/IP.
In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without
network access can also access remote serial device via adding NetCom devices to the existing serial port.
NetCom 813 can be configured over Driver Panels, WEB Browser, serial Port, Telnet, SNMP and serves as a
transparent serial channel without platform and distance limitation.
|
|
| Features |
- Control 8 x RS232/422/485 devices located virtually anywhere
(via Ethernet or Internet)
- Lan interface 10BaseT/100BaseTx Ethernet
- Driver automaticlly finds NetCom devices in the network
- Configuration over Driver Panels, serial Port, Telnet, WEB Browser, SNMP
- Automatic mode switching between Driver and Raw Mode
- Support TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS
- supports ART (Automatic Receive Transmit control)
- RS232/422/485 interface selectable by Switches
|
 Back to Top |
| Specifications |
| Hardware |
Processor |
ARM 7 TDMI 50MHz |
I/O controller |
16C550C or compatible |
Memory |
8MB SDRAM, 1 MB Flash |
Connector type |
RJ45 for LAN,
DSUB 9 male for serial Port |
| Back to Top |
| Interface |
LAN interface |
Auto-detecting 10BaseT/100BaseTx |
Protocols |
TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS |
Serial interface |
RS232/422/485 switchable |
No. of port |
8, Speed up to 460Kbps |
Available Modes |
RS232 full duplex
RS422 full duplex
RS485 4 wire, full duplex
RS485 2 wire, half duplex, with echo
RS485 2 wire, half duplex, without echo |
Signals |
RS232 TxD,RxD, RTS/CTS, DTR,DSR, DCD, RI, GND
RS422 Tx+/-, Rx+/-, GND
RS485 2 wire Data+/-, GND
RS485 4 wire Tx+/-, Rx+/-, GND |
RS485 Data control |
Controlled by ART (Automatic Receive Transmit control) or RTS |
| Back to Top |
| Performance |
Speed |
Up to 460Kbps |
Parity |
None, even, odd, space, mark |
Data bits |
5, 6, 7, 8 |
Stop bits |
1, 1.5, 2 |
IRQ |
None |
I/O address |
None |
| Back to Top |
| Operating Modes |
Driver mode |
VScom Driver for Windows NT 4.0, 2000, XP, 2003 and Vista
Driver Mode creates virtual Com port |
TCP Raw Server |
Raw data transfer over TCP/IP. Accepts multiple incoming connections |
TCP Raw Client |
Raw data transfer over TCP/IP. Connects to multiple hosts or devices waiting for incoming connections |
TCP Advanced Settings |
Special settings for user-defined modes |
UDP Mode |
Raw data transfer by UDP. The NetCom is client and server at the same time. With the timeout functionality and a configurable trigger string it can make defined UDP packets of incoming data. |
Null Modem Tunnel |
Connecting two NetCom used as virtual null modem cable |
IP Modem |
The serial port emulates a standard modem. Operates by AT-commands, and dials to IP-Addresses instead of phone numbers. Windows "INF"-Driver provided for installation. |
Print Server |
The NetCom accepts print jobs, and spools them to the attached serial printer. Operates as of RFC1197, similar to the line printer daemon in Unix-systems |
| Back to Top |
| Power and Environment |
Power requirements |
9 - 30V DC, 600mA @ 12V |
Power supply Adapter |
12V DC 1A |
Dimension |
167 x 99 x 43 mm (W×L×H)
189 x 102 x 44 mm with DB9 connectors and ears |
Operating Temp |
0°C - 60 °C |
Storage Temp |
-20°C - 85°C |
Case |
SECC sheet metal (1mm) |
Weight |
0.7kg |
| Back to Top |
| Special Features |
Installation |
Configuration utility automatically finds NetCom devices in the network. |
Operating mode |
Automatic mode switching between Driver and TCP RAW mode. With TCP Advanced settings it is possible to configure the NetCom for using it in multiple modes, so it decides automatically which mode should be used. |
Configuration |
Configuration over Driver Panels, NetCom Manager, WEB Browser, serial console, Telnet, SNMP |
SNMP |
special VScom MIB included |
ART |
Automatic Receive Transmit control for RS485 |
DNS |
Domain Name Server support |
Serial interface |
Serial Interface configurable with external switch |
Firewall |
Special precautions for Firewall environments |
Firmware |
Firmware update over WEB Browser, Telnet, ComPort |
LEDs |
LEDs for Power, Tx, Rx, LAN Link, LAN Speed |
| Back to Top |
| Security |
Password access |
Every capabilities of configuration use the same password including SNMP V3 |
| Back to Top |
| Approvals |
EMC |
FCC Class A, CE Class A |
Environment |
RoHS |
| Back to Top |
| Ordering Information |
Art.No |
671 |
Product Name |
NetCom 813 |
Packing list |
. NetCom 813
. Power supply adapter 12V, 1A
. Serial Null-Modem adapter
. CD-ROM with Driver and configuration software
. Printed Quick Installation Guide |
Optional Accessories |
. DK 35A - DIN-Rail mounting kit |
| Back to Top |
| |
