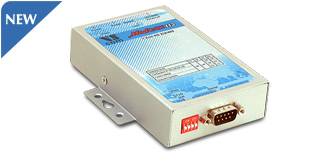

ModGate 113

1 port industrial modbus gateway


Modgate 113 is an industrial-strength Modbus-Network gateway for connecting one Modbus line to a network running TCP/IP. It operates without platform and distance limitation.

ModGate 113 uses Modbus/TCP for communication on the network. The serial port is configured for Modbus/ASCII or Modbus/RTU, while the serial line is physically set for RS232 or RS485. The messages received on the network are sent to the serial line, messages from the serial port are sent via network.

The configuration of ModGate 113 is done via HTTP. The user interface is based on Web 2.0 to provide an easy handling of the options. Besides typical serial parameters the configuration includes RS232/485 for serial physical parameters. Further a Modbus address mapping table is available, defining a target port for a certain Modbus address.

ModGate devices are available with up to 8 serial ports, optional also with WLAN plus Ethernet. <...Read More >

  Processor

ARM 9 166 MHz

  I/O controller

16C950 or compatible

  Memory

16MB SDRAM, 2 MB Flash

  Connector type

RJ45 for Ethernet,
DSUB 9 male for serial Port

  Ethernet interface

Auto-detecting 10BaseT/100BaseTx

  Protocols

TCP/IP, DHCP, ICMP, HTTP, DNS

  Serial interface

RS232/485 selected by software

  No. of port

1, Speed up to 115200 bps

  Available Modes

RS232 full duplex
RS485 2 wire, half duplex, with echo

  Signals

RS232: TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND
RS485: 2 wire Data+/-, GND

  RS485 Data control

Controlled by ART (Automatic Receive Transmit control)

  Speed

Up to 115200 bps

  Parity

None, even, odd

  Data bits

7, 8

  Stop bits

1, 2

  IRQ

None

  I/O address

None

  Modbus RTU/ASCII

Modbus RTU or Modbus ASCII protocol selected for each serial port individually

  DirectMappingMode

Direct mapping of Modbus addresses to serial ports or TCP connections

  PromiscousMode

Mapping of serial ports to TCP connections

  Power requirements

9 - 30V DC, 500mA @ 12V

  Power supply Adapter

12V DC, 1A. Connected by Terminal block

  Dimension

73 x 115 x 27 mm (W×L×H)
101 x 121 x 27 mm with DB9 connector & DIN rail mounting kit

  Operating Temp

0°C - 55 °C

  Storage Temp

-20°C - 85°C

  Case

SECC sheet metal (1mm)

  Weight

0.2kg

  Installation

Dip switches set a defined temporary IP Address to contact via WEB Browser

  Operating mode

Promiscous Mode :
Messages received from the network are sent to the serial port, messages from the serial port are sent to the connected network host.

Mapped Mode :
Received messages are scanned for their target address. This address is found in a table, the message is sent to the defined connection (serial or TCP).

  Configuration

Configuration over WEB Browser

  ART

Automatic Receive Transmit control for RS485

  DNS

Domain Name Server support

  Serial interface

Serial Interface configurable by software

  Firmware

Firmware update over WEB Browser

  LEDs

LEDs for Power, serial Tx, Rx, Ethernet Link, Speed

  Password access

Webinterface is password protected. The password can be changed in the Webinterface.

  EMC

FCC Class A, CE Class A

  Environment

RoHS

  Art.No

6700

  Product Name

ModGate 113

  Packing list

. ModGate 113
. Power supply adapter 12V, 1000mA
. CD-ROM with user manual

  Optional Accessories

. DK-35A DIN-Rail mounting kit
