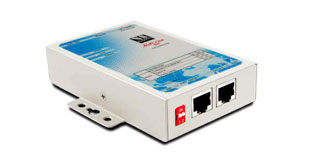

NetCom 211

2 ports serial device server


NetCom 211 is an industrial-strength network-based serial device server for connecting two RS232 devices like CNC, PLC, weighting scale, scanner and other devices directly to the 10/100Mbps Ethernet network running TCP/IP.

In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without network access can also access remote serial device via adding NetCom devices to the existing serial port.

NetCom 211 can be configured over Driver Panels, WEB Browser, serial Port, Telnet, SNMP and serves as a transparent serial channel without platform and distance limitation.


  Processor

ARM 7 TDMI 50MHz

  I/O controller

16C550C or compatible

  Memory

8MB SDRAM, 1 MB Flash

  Connector type

RJ45 for LAN,
2 x RJ45 -8pin for serial Port

  LAN interface

Auto-detecting 10BaseT/100BaseTx

  Protocols

TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS

  Serial interface

2 x RS232

  No. of port

2, Speed up to 460Kbps

  Available Modes

RS232 full duplex

  Signals

RS232 TxD,RxD, RTS/CTS, DTR,DSR, DCD, GND

  RS422/485

only RS232

  Speed

Up to 460Kbps

  Parity

None, even, odd, space, mark

  Data bits

5, 6, 7, 8

  Stop bits

1, 1.5, 2

  IRQ

None

  I/O address

None

  Driver mode

VScom Driver for Windows NT 4.0, 2000, XP, 2003 and Vista
Driver Mode creates virtual Com port

  TCP Raw Server

Raw data transfer over TCP/IP. Accepts multiple incoming connections

  TCP Raw Client

Raw data transfer over TCP/IP. Connects to multiple hosts or devices waiting for incoming connections

  TCP Advanced Settings

Special settings for user-defined modes

  UDP Mode

Raw data transfer by UDP. The NetCom is client and server at the same time. With the timeout functionality and a configurable trigger string it can make defined UDP packets of incoming data.

  Null Modem Tunnel

Connecting two NetCom used as virtual null modem cable

  IP Modem

The serial port emulates a standard modem. Operates by AT-commands, and dials to IP-Addresses instead of phone numbers. Windows "INF"-Driver provided for installation.

  Print Server

The NetCom accepts print jobs, and spools them to the attached serial printer. Operates as of RFC1197, similar to the line printer daemon in Unix-systems

  Power requirements

9 - 30V DC, 250mA @ 12V

  Power supply Adapter

9V, 500mA

  Dimension

73 x 115 x 27 mm (W×L×H)
101 x 115 x 27 mm with ears

  Operating Temp

0°C - 60 °C

  Storage Temp

-20°C - 85°C

  Case

SECC sheet metal (1mm)

  Weight

0.25kg

  Installation

Configuration utility automatically finds NetCom devices in the network.

  Operating mode

Automatic mode switching between Driver and TCP RAW mode. With TCP Advanced settings it is possible to configure the NetCom for using it in multiple modes, so it decides automatically which mode should be used.

  Configuration

Configuration over Driver Panels, NetCom Manager, WEB Browser, serial console, Telnet, SNMP

  SNMP

special VScom MIB included

  ART

No

  DNS

Domain Name Server support

  Serial interface

Serial Interface configurable with external switch

  Firewall

Special precautions for Firewall environments

  Firmware

Firmware update over WEB Browser, Telnet, ComPort

  LEDs

LEDs for Power, Tx, Rx, LAN Link, LAN Speed

  Password access

Every capabilities of configuration use the same password including SNMP V3

  EMC

FCC Class A, CE Class A

  Environment

RoHS

  Art.No

667

  Product Name

NetCom 211

  Packing list

. NetCom 211
. Power supply adapter 9V, 500mA
. 2 x RJ45 8-pin to DSUB 9 male RS232 cable 1m
. CD-ROM with Driver and configuration software
. Printed Quick Installation Guide

  Optional Accessories

. DK 35A - DIN-Rail mounting kit
