NetCom 113
1 port (RS232/422/485) serial device server


Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product

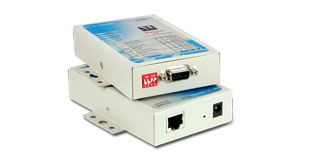

View Larger Image
NetCom 113 is an industrial-strength network-based serial device server for connecting one RS232/422/485 device like CNC, PLC, weighting scale, scanner and other devices directly to the 10/100Mbps Ethernet network running TCP/IP.

In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without network access can also access remote serial device via adding NetCom devices to the existing serial port.

NetCom 113 can be configured over Driver Panels, WEB Browser, serial Port, Telnet, SNMP and serves as a transparent serial channel without platform and distance limitation.

The serial connector is pin-compatible to Com1 on a PC, as DB9 male. The RS232 Null-Modem Adapter is no longer required.

The power consumption of NetCom 113 is very low, supply via Ethernet is available. See the option, read background information, or check an adapter.
Features

  • Can control 1 x RS232/422/485 devices located virtually anywhere (via Ethernet or Internet)
  • Serial port DB9 male
  • LAN interface 10BaseT/100BaseTx Ethernet
  • Driver automatically finds NetCom devices in the network
  • Configuration over Driver Panels, serial Port, Telnet, WEB Browser, SNMP
  • Automatic mode switching between Driver and RAW Mode
  • Support TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS
  • Supports ART (Automatic Receive Transmit control)
  • RS232/422/485 interface selectable by Switches

Back to Top
Specifications
Hardware
  Processor
ARM 7 TDMI 50MHz
  I/O controller
16C550C or compatible
  Memory
8MB SDRAM, 1 MB Flash
  Connector type
RJ45 for LAN, DSUB 9 female for serial Port
Back to Top
Interface
  LAN interface
Auto-detecting 10BaseT/100BaseTx
  Protocols
TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS
  Serial interface
RS232/422/485 switchable
New:Connector DB9 male, not female
  No. of port
1, Speed up to 460 Kbps
  Available Modes
RS232 full duplex
RS422 full duplex
RS485 4 wire, full duplex
RS485 2 wire, half duplex, with echo
RS485 2 wire, half duplex, without echo
  Signals
RS232: TxD,RxD
RTS,CTS, DTR,DSR, DCD, RI, GND
RS422: Tx+/-, Rx+/-, GND
RS485 2 wire: Data+/-, GND
RS485 4 wire: Tx+/-, Rx+/-, GND
  RS485 Data control
Controlled by ART (Automatic Receive Transmit control) or by RTS
Back to Top
Performance
  Speed
Up to 460 Kbps
  Parity
None, even, odd, space, mark
  Data bits
5, 6, 7, 8
  Stop bits
1, 1.5, 2
  IRQ
None
  I/O address
None
Back to Top
Operating Modes
  Driver Mode
VScom Driver for Windows NT 4.0, 2000 up to 7, Server 2000 up to 2008 R2, both x86 and x64 Editions.
The Driver creates a virtual Com port, using Vscom NetCom protocol
  TCP Raw Server
Raw data transfer over TCP/IP. Accepts multiple incoming connections.
  TCP Raw Client
Raw data transfer over TCP/IP. Connects to multiple hosts or devices waiting for incoming connections.
  TCP Advanced
  Settings
Special settings for user-defined modes.
  UDP Mode
Raw data transfer by UDP. The NetCom is client and server at the same time. With the timeout functionality and a configurable trigger string it can make defined UDP packets of incoming data.
  Null Modem Tunnel
Connecting two NetCom used as virtual null modem cable.
  IP Modem
The serial port emulates a standard modem. Operates by AT-commands, and dials to IP-Addresses instead of phone numbers.
Windows "INF"-Driver provided for installation.
  Print Server
The NetCom accepts print jobs, and spools them to the attached serial printer. Operates as of RFC1197, similar to the line printer daemon in Unix-systems
Back to Top
Special Features
  Installation
Configuration utility automatically finds NetCom devices in the network
  Operating Mode
Automatic mode switching between Driver and TCP RAW mode.
With TCP Advanced settings it is possible to configure the NetCom for using it in multiple modes, so it decides automatically which mode should be used.
  Configuration
Configuration over Driver Panels, NetCom Manager, WEB Browser, serial console, Telnet, SNMP
  SNMP
Special VScom MIB included
  ART
Automatic Receive Transmit control for RS485
  DNS
Domain Name Server support
  Serial interface
Serial Interface configurable with external switch
  Firewall
Special precautions for Firewall environments
  Firmware
Firmware update over WEB Browser, Telnet, ComPort
  LEDs
LEDs for Power, Tx, Rx, LAN Link, LAN Speed
Back to Top
Security
  Password access
Every capabilities of configuration use the same password including SNMP V3
Back to Top
Power and Environment
  Power requirements
9 - 30V DC, 200mA @ 12V
  Power supply Adapter
12V DC 1A
  Dimensions
73 x 115 x 27 mm (W × L × H)
101 x 121 x 27 mm (W × L × H) with DB9 connector and ears
  Operating Temp.
0°C - 60°C
  Storage Temp.
-20°C - 85°C
  Case
SECC sheet metal (1mm)
  Weight
0.2Kg
Back to Top
Approvals
  EMC
FCC Class A, CE Class A
  Environment
RoHS
Back to Top
Ordering Information
  Art.No
666
  Product Name
NetCom 113
  Option PoE
Power supply over Ethernet, see NetCom 113 PoE
  Packing list
. NetCom 113
. Power supply adapter 12V, 1A
. CD-ROM with Driver and configuration software
. Printed Quick Installation Guide
  Optional Accessories
. DK 35A - DIN-Rail mounting kit
. Serial Adapter - RS232 Null-Modem adapter, change male to female
. VS-POE 10 - Power over Ethernet Splitter, IEEE 802.3af compliant (15W max.)
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
