NetCom 111
(Replaced by NetCom Plus 111)

1x RS232 for LAN

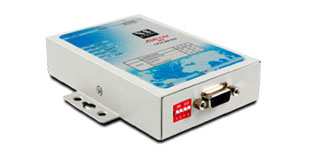

VScom NetCom 111, a Serial Device Server for Ethernet/TCP to RS232
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

NetCom 111 is an industrial-strength network-based serial device server for connecting one RS232 device like CNC, PLC, weighting scale, scanner and other devices directly to the 10/100Mbps Ethernet network running TCP/IP.
In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without network access can also access remote serial device via adding NetCom devices to the existing serial port. NetCom 111 can be configured over Driver Panels, WEB Browser, serial Port, Telnet, SNMP and serves as a transparent serial channel without platform and distance limitation.
New: The serial connector is pin-compatible to Com1 on a PC, as DB9 male. The RS232 Null-Modem Adapter is no longer required.

The power consumption of NetCom 111 is very low, supply via Ethernet is available. See the option, read background information, or check an adapter.


Keywords: Serial to Ethernet converter, RS232, Device Server, Serial Port Server, RS232 zu Ethernet LAN Adapter, TCP/IP, Com Port Redirector

A Serial Device Server for TCP/IP on Ethernet and Internet, RS232 as Com Ports in Windows. Modbus was tested by users.
Features

  • Phased Out, no longer available
  • Can control 1x RS232 devices located virtually anywhere (via Ethernet or Internet)
  • Serial port DB9 male
  • LAN interface 10BaseT/100BaseTx Ethernet
  • Driver automatically finds NetCom devices in the network
  • Configuration over Driver Panels, serial Port, Telnet, WEB Browser, SNMP
  • Automatic mode switching between Driver and RAW Mode
  • Support TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS

Back to Top
Specifications
Hardware
  Processor
ARM 7 TDMI 50MHz
  I/O controller
16C550C or compatible
  Memory
8MB SDRAM, 1 MB Flash
  Connector type
RJ45 for LAN, DSUB 9 female for serial Port
Back to Top
Interface
  LAN interface
Auto-detecting 10BaseT/100BaseTx
  Protocols
TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS
  Serial interface
RS232
New: Connector DB9 male, not female
  No. of port
1, Speed up to 460Kbps
  Available Modes
RS232 full duplex
  Signals
TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND
Back to Top
Performance
  Speed
up to 460Kbps
  Parity
None, even, odd, space, mark
  Data bits
5, 6, 7, 8
  Stop bits
1, 1.5, 2
  IRQ
None
  I/O address
None
Back to Top
Operating Modes
  Driver Mode
VScom Driver for Windows NT 4.0, 2000 up to 7, Server 2000 up to 2008 R2, both x86 and x64 Editions.
The Driver creates a virtual Com port, using Vscom NetCom protocol.
  TCP Raw Server
Raw data transfer over TCP/IP. Accepts multiple incoming connections.
  TCP Raw Client
Raw data transfer over TCP/IP. Connects to multiple hosts or devices waiting for incoming connections.
  TCP Advanced Settings
Special settings for user-defined modes.
  UDP Mode
Raw data transfer by UDP. The NetCom is client and server at the same time. With the timeout functionality and a configurable trigger string it can make defined UDP packets of incoming data.
  Null Modem Tunnel
Connecting two NetCom used as virtual null modem cable.
  IP Modem
The serial port emulates a standard modem. Operates by AT-commands, and dials to IP-Addresses instead of phone numbers.
Windows "INF"-Driver provided for installation.
  Print Server
The NetCom accepts print jobs, and spools them to the attached serial printer. Operates as of RFC1197, similar to the line printer daemon in Unix-systems
Back to Top
Power and Environment
  Power requirements
9 - 30V DC, 200mA @ 12V
  Power supply Adapter
12V DC 1A
  Dimension
 73×115×27 mm³ (W×L×H)
101×121×27 mm³ with DB9 connector and ears
  Operating Temp
0°C - 60°C
  Storage Temp
-20°C - 85°C
  Case
SECC sheet metal (1mm)
  Weight
0.2kg
Back to Top
Special Features
  Installation
Configuration utility automatically finds NetCom devices in the network
  Operating mode
Automatic mode switching between Driver and TCP RAW mode.
With TCP Advanced settings it is possible to configure the NetCom for using it in multiple modes, so it decides automatically which mode should be used.
  Configuration
Configuration over Driver Panels, NetCom Manager, WEB Browser, serial console, Telnet, SNMP
  SNMP
special VScom MIB included
  ART
no
  DNS
Domain Name Server support
  Firewall
Special precautions for Firewall environments
  Firmware
Firmware update over WEB Browser, Telnet, ComPort
  LEDs
LEDs for Power, Tx, Rx, LAN Link, LAN Speed
Back to Top
Security
  Password access
Every capabilities of configuration use the same password including SNMP V3
Back to Top
Ordering Information
  Part Number
664
  Product Name
NetCom 111
  Option PoE
Power supply over Ethernet, see NetCom 111-POE
  Packing list
NetCom 111
Power supply adapter 12V, 1A
CD-ROM with Driver and configuration software
Printed Quick Installation Guide
Back to Top
Optional Accessories
  662
DK 35A DIN-Rail mounting adapters
RS232 Null-Modem adapter, change male to female
Power over Ethernet Splitter, IEEE 802.3af compliant (15W max.)
Back to Top
You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

  * Specifications are subject to change without notice.
  * All the trademarks and brands are property of their rightful owners.
