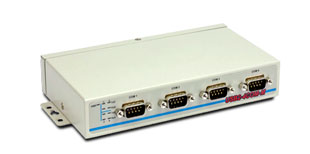

VScom USB-4COM-M

USB to 4 RS232 ports adapter


Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports. The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.


  Ports

4 RS232 ports

  Speed

Up to 921.6kbps

  RS232 signals

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  Power

USB Bus powered, no external power supply

  Driver

Windows 98, ME, 2000, XP, 2003 Server, Vista and
Linux (Kernel 2.4 and up built-in)

  Connectors

4 DB9 male

  Dimensions

172 x 95 x 29 mm (W×L×H)
184 x 99 x 29 mm with DB9 connector and ears

  Art.No

645

  Product Name

VScom USB-4COM-M

 Packing list

. VScom USB-4COM-M
. USB cable 0,9m
. CD, English Documentation

 Optional Accessories

. DK 35A - DIN-Rail mounting kit
