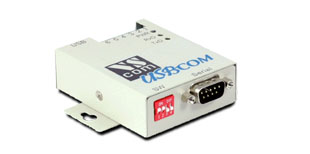

VScom USB-COMi-M

USB to 1 RS232/422/485 port adapter


Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports. The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.


  Ports

1 RS232/422/485 port

  Speed

Up to 921.6kbps

  RS232 signals

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  RS422/485 signals

RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND
RS485 Data+/-, GND

  Power

USB Bus powered, no external power supply

  Driver

Windows 98, ME, 2000, XP, 2003 Server, Vista
Linux (Kernel 2.4 and up built-in)

  Connectors

1 DB9 male and terminal block

  Dimensions

57 x 72 x 22 mm (W×L×H)
82 x 77 x 22 mm with DB9 connector and ears

  Art.No

638

  Product Name

VScom USB-COMi-M

 Packing list

. VScom USB-COMi-M
. USB cable 0,9m
. CD, English Documentation

 Optional Accessories

. DK 35A - DIN-Rail mounting kit

You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.
