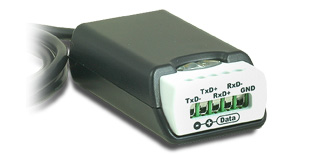

VScom USB-COM-I-TB

USB to 1 RS422/485 port adapter


Industrial serial ports on USB connect RS-422 and RS485 devices, used in industrial environment. With RS-485 the data direction is controlled by the port, without further action from the software.

The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.


  Ports

1 RS422/485 port

  Speed

Up to 3000 kbps

  Available Modes

RS422 full duplex
RS485 4 wire, full duplex
RS485 2 wire, half duplex, with echo
RS485 2 wire, half duplex, without echo

  Signals

RS422 Tx+/-, Rx+/-, GND
RS485 2 wire Data+/-, GND
RS485 4 wire Tx+/-, Rx+/-, GND

  USB Interface

USB2.0

  Power

USB bus powered, no external power supply

  Driver

Windows 2000 to Windows 7, Server 2000 to 2008 R2,
both x86 and x64 Editions. Also Windows 98/SE/ME.
Linux (Kernel 2.6 built-in, 2.4 available)

  Connectors

One Terminal Block Adapter

  Art.No

630

  Product Name

VScom USB-COM-I-TB

 Packing list

.VScom USB-COM-I-TB Adapter
.USB cable 0,9m
.CD, English Documentation
