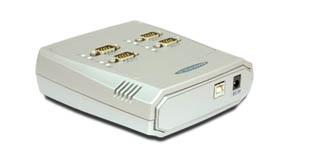

VScom USB-4COM-I

USB to 4 RS422/485 ports adapter


Industrial serial ports on USB connect RS-422 and RS-485 devices, used in industrial environment. With RS-485 the data direction is controlled by the port, without further action from the software. The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.


  Ports

4 RS422/485 ports

  Speed

Up to 921.6kbps

  RS422/485 signals

RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND
RS485 Data+/-, GND

  Power

External power supply 5V DC required. Adapter included,
12V not possible.

  Driver

Windows 98, ME, 2000, XP, 2003 Server and Vista
Linux (Kernel 2.4 and up built-in)

  Connectors

4 DB9 male

  Art.No

622

  Product Name

VScom USB-4COM-I

 Packing list

. VScom USB-4COM-I
. USB cable 0,9m
. Power supply 5.0V, 1.6A, 100-240V
. CD, English Documentation

You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.
