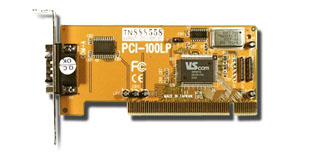

VScom 100L PCI Low Profile

Low Profile 1 RS232 port PCI Card


The Low Profile card fits to the PCI Low-Profile specifications. As such it is usable in small cases. The serial port is based on a 16C550A UART with 16 byte FIFO. The eightfold maximum speed allows some unusual transmission rates.


  Ports

1 x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)

  UART

1 x 16550 (16 Byte FIFO)

  Address

Plug and Play

  Interrupts

PCI Plug and Play, only one interrupt/card

  Speed

Max. 921 kbps

  Bus interface

PCI

  Connectors

1 x DB9 male (COM)

  Size

120mm (L) x 80mm (H)

  Bracket Height

80mm Half-Height,for slimline cased PC

  Temperature

0°C - 55°C

  FIFO

FIFO size 16Byte
Adjustable Rx 1,4,8,14 Bytes Tx 1 up to 16 Bytes

  Handshake

RTS / CTS
Xon / Xoff

  Speed

1bps up to 921kbps
Multiplication factor for legacy applications

  UART

UART emulation of 8250 and 16450

  WIN95, WIN98, ME

VScom high performance serial driver

  WIN NT 4.0

VScom high performance serial driver, control panel applet

  WIN 2000, XP, Vista

VScom high performance serial driver

  Win 2003 Server

VScom high performance serial driver

  DOS

Virtuell address driver and compatibility tools
real DOS COM port emulation

  OS/2

Supported by COM16 driver in recent system releases
Third party serial driver SIO.SYS available

  Linux

Kernel 2.6 and up: built-in support
Previous kernel: VScom high performance real tty driver

  div.UNIX

Configuration instructions

  Art.No

467

  Product Name

VScom 100L PCI Low Profile

  Packing list

. VScom 100L PCI Low Profile
. CD, English documentation
