VScom 800E PCIex
(PCIex-800E, Replaced by CP-168EL-A PCIe)

8x RS-232

VScom 800E PCIex, a 8 Port RS232 PCI Express x1 card, 16C950 UART
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product

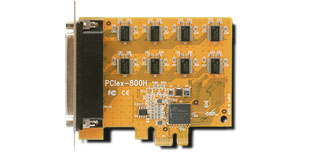

View Larger Image

The VScom 800E PCIex is an add-on card for PCI Express, providing eight serial ports. These high speed serial ports with their 128 byte long FIFO are best for high speed communication, even in heavy loaded systems. Many unique features reduce the system load. They also allow very unusual speed settings such as 500.000bps.

Read the News Article…

Features

  • Phased Out, no longer available
  • PCI Express x1
  • 8x RS232
  • 16C950 (128 Byte FIFO)
  • 921 kbps
  • PCI Plug and Play
  • Drivers for Windows 2000 to 7/2008R2
  • Use connection cable OPT8D-M or OPT8C

Back to Top
Specifications
Hardware Specifications
  Ports
8x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)
  UART
8x 16C950 (128 Byte FIFO)
  Address
Plug and Play
  Interrupts
PCI Plug and Play, only one interrupt per card
  Speed
max. 921 kbps
  Bus interface
PCI Express x1
  Connectors
1x DB62, optional adapter cable or box
  Temperature
0°C - 55°C
Back to Top
High Performance Features
  FIFO
adjustable FIFO length, 1 up to 128 Bytes
separate adjustable Rx and Tx
  Handshake
RTS / CTS
DTR / DSR
Xon / Xoff
all handshake automatic on Chip
  Speed
1 bps up to 921 kbps
unusual Baudrates possible
Multiplication factor for legacy applications
  Access
high speed access via Memory
  UART
UART emulation of 8250 up to 16850
Back to Top
Operating Systems
  Windows XP up to 7
VScom high performance serial driver, x86 and x64 Editions
  Server 2003 up to 2008 R2
VScom high performance serial driver, x86 and x64 Editions
  Linux
Kernel 2.6.35 and up: built-in support
Back to Top
Ordering Information
  4504
VScom 800E PCIex
Back to Top
Options
  705
OPT8D-S connection cable DB 62 on 8 x DSUB 9 male (with screws)
  404
OPT8D-M connection cable DB 62 on 8 x DSUB 9 male (with nuts)
  706
OPT8C connection cable DB 62 on 8 x DSUB 25
  704
OPT8M9 connection box DB 62 with 8 x DSUB 9
Back to Top
Packaging
  Packing list
VScom 800E PCIex card
CD, English documentation
Back to Top
