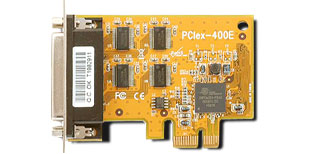

VScom 400E PCIex

4 RS232 ports PCI Express Card


The VScom 400E PCIex is an add-on card for PCI Express, providing four serial ports. These high speed serial ports with their 128 byte long FIFO are best for high speed communication, even in heavy loaded systems. Many unique features reduce the system load. They also allow very unusual speed settings such as 500.000bps.

The extra bracket allows to place the card in Low Profile cases.


  Ports

4 x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)

  UART

4 x 16C950 (128 Byte FIFO)

  Address

Plug and Play

  Interrupts

PCI Plug and Play, only one interrupt per card

  Speed

Max. 921 kbps

  Bus interface

PCI Express x 1

  Connectors

1 x DB44, adapter cable 4 x DB9 male

  Low Profile

Extra bracket for alternative mounting

  Temperature

0°C - 55°C

  FIFO

Adjustable FIFO length, 1 up to 128Bytes
separate adjustable Rx and Tx

  Handshake

RTS / CTS
DTR / DSR
Xon / Xoff
All handshake automatic on Chip

  Speed

1bps up to 921kbps
Unusual Baudrates possible
Multiplication factor for legacy applications

  Access

High speed access via Memory

  UART

UART emulation of 8250 up to 16850

  WIN 2000, XP, Vista

VScom high performance serial driver

  Win 2003 Server

VScom high performance serial driver

  Art.No

4503

  Product Name

VScom 400E PCIex

  Packing list

. VScom 400E PCIex
. Adapter cable 4 Ports RS232 DSUB 9 male
. Bracket for Low Profile cases
. CD, English documentation
