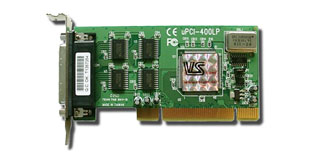

VScom 400H UPCI Low Profile

Low Profile 4 RS232 ports UPCI Card


The Low Profile card fits to the PCI Low-Profile specifications. As such it is usable in small cases. The high speed serial ports with their long 128 byte FIFO are best for high speed communication, even in heavy loaded systems.


  Ports

4 x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)

  UART

4 x 16C950 (128 Byte FIFO)

  Address

Plug and Play

  Interrupts

PCI Plug and Play, only one interrupt/card

  Speed

Max. 921 kbps

  Bus interface

Universal PCI 3.3V / 5.0V

  Connectors

1 x DB44 to 4 x DB9 male

  Size

120mm(L) x 80mm(H)

  Bracket Height

80mm Half-Height,for slimline cased PC

  Temperature

0°C - 55°C

  FIFO

Adjustable FIFO length, 1 up to 128Bytes
separat adjustable Rx and Tx

  Handshake

RTS / CTS
DTR / DSR
Xon / Xoff
All handshake automatic on Chip

  Speed

1bps up to 921kbps
Unusual Baudrates
Multiplication factor for legacy applications

  Access

High speed access via Memory

  UART

UART emulation of 8250 up to 16850

  WIN95, WIN98, ME

VScom high performance serial driver

  WIN NT 4.0

VScom high performance serial driver, control panel applet

  WIN 2000, XP, Vista

VScom high performance serial driver

  Win 2003 Server

VScom high performance serial driver

  DOS

Virtuell address driver and compatibility tools
real DOS COM port emulation

  OS/2

Supported by COM16 driver in recent system releases
Third party serial driver SIO.SYS available

  Linux

Kernel 2.6 and up: built-in support
Previous kernel: VScom high performance real tty driver

  div.UNIX

Configuration instructions

  Art.No

4470

  Product Name

VScom 400H UPCI Low Profile

  Packing list

. VScom 400H UPCI Low Profile
. Cable 1 x DB44 to 4 x DB9 male
. CD, English documentation
