| Features |
- Universal PCI 3.3 / 5.0V
- 2 x RS232
- UART 16550 (16 Byte FIFO)
- Speed 921 kbps
- PCI Plug and Play
- IRQ Interupt sharing, only one Interupt per card
- Drivers Win95/98/ME, NT 4.0, Win2k, XP, Vista, Linux, DOS
|
 Back to Top |
| Specifications |
| Hardware |
Ports |
2 x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI) |
UART |
2 x 16550 (16 Byte FIFO) |
Address |
Plug and Play |
Interrupts |
PCI Plug and Play, only one interrupt/card |
Speed |
Max. 921 kbps |
Bus interface |
Universal PCI 3.3V / 5.0V |
Connectors |
1 x DB25 male (COM) |
Size |
120mm(L) x 80mm(H) |
Bracket Height |
80mm Half-Height, for slimline cased PC |
Temperature |
0°C - 55°C |
| Back to Top |
| High Performance Features |
FIFO |
FIFO size 16Byte
Adjustable Rx 1,4,8,14 Bytes Tx 1 up to 16 Bytes |
Handshake |
RTS / CTS
Xon / Xoff |
Speed |
1bps up to 921kbps
Multiplication factor for legacy applications |
UART |
UART emulation of 8250 up to 16450 |
| Back to Top |
| Operating Systems |
WIN95, WIN98, ME |
VScom high performance serial driver |
WIN NT 4.0 |
VScom high performance serial driver, control panel applet |
WIN 2000, XP, Vista |
VScom high performance serial driver |
Win 2003 Server |
VScom high performance serial driver |
DOS |
Virtuell address driver and compatibility tools
real DOS COM port emulation |
OS/2 |
Supported by COM16 driver in recent system releases
Third party serial driver SIO.SYS available |
Linux |
Kernel 2.6 and up: built-in support
Previous kernel: VScom high performance real tty driver |
div.UNIX |
Configuration instructions |
| Back to Top |
| Ordering Information |
Art.No |
4468 |
Product Name |

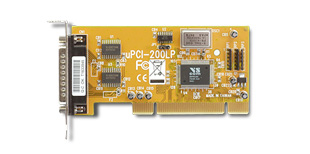

VScom 200L UPCI Low Profile |
Packing list |
. VScom 200L UPCI Low Profile
. Dual-Port cable (DB25 to 2 x DB9 male)
. CD, English documentation |
