VScom 800H UPCI
(uPCI-800H)

8x RS-232

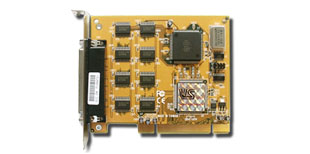

VScom 800H UPCI, a 8 Port RS232 PCI card, 16C950 UART

	Features

	Specifications

	Ordering Information

	Drivers & Documentation

	Datasheet

	Inquiry this product

	View Larger Image

	BUY

The high speed serial ports with their 128 byte long FIFO are best for high speed communication, even in heavy loaded systems. Many unique features reduce the system load. They also allow very unusual speed settings such as 500.000bps.

Features
Universal PCI 3.3 / 5.0V 8x RS232 16C950 (128 Byte FIFO) 921 kbps PCI Plug and Play IRQ Interrupt sharing, only one Interrupt per card Drivers for Windows 95 to 7/2008 R2 Software compatibel with DOS, Windows 3.11, OS/2, Linux and div. Unix Use connection cable OPT8D-M or OPT8C
Back to Top
Specifications
Hardware Specifications
Ports	8x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD)
UART	8x 16C950 (128 Byte FIFO)
Address	Plug and Play
Interrupts	PCI Plug and Play, only one interrupt/card
Speed	max. 921 kbps
Bus interface	Universal PCI. 3.3V / 5.0V
Connectors	1x DB62
Temperature	0°C - 55°C
Back to Top
High Performance Features
FIFO	adjustable FIFO length, 1 up to 128Bytes separat adjustable Rx and Tx
Handshake	RTS / CTS DTR / DSR Xon / Xoff all handshake automatic on Chip
Speed	1bps up to 921kbps unusual Baudrates Multiplication factor for legacy applications
Access	high speed access via Memory
UART	UART emulation of 8250 up to 16850
Back to Top
Operating Systems
Windows 2000 up to 7	VScom high performance serial driver, x86 and x64 Editions
Server 2000 to 2008 R2	VScom high performance serial driver, x86 and x64 Editions
Windows NT 4.0	VScom high performance serial driver control panel applet
Windows 95, 98, SE, ME	VScom high performance serial driver
DOS	virtuell address driver and compatibility tools real DOS Com port emulation
OS/2	Supported by COM16 driver in recent system releases Third party serial driver SIO.SYS available
Linux	Kernel 2.6 and up: built-in support Previous kernel: VScom high performance real tty driver
div.UNIX	configuration instructions
Back to Top
Ordering Information
4430	VScom 800H UPCI
Back to Top
Options
705	OPT8D-S connection cable DB 62 on 8 x DSUB 9 male (with screws)
404	OPT8D-M connection cable DB 62 on 8 x DSUB 9 male (with nuts)
706	OPT8C connection cable DB 62 on 8 x DSUB 25
704	OPT8M9 connection box DB 62 with 8 x DSUB 9
Back to Top
Packaging
Packing list	VScom 800H UPCI card CD, English documentation
Back to Top

You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.

* Specifications are subject to change without notice.
* All the trademarks and brands are property of their rightful owners.
