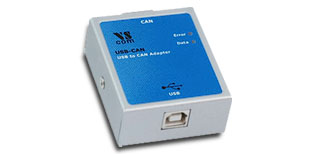

USB-CAN1 port USB to CAN Bus Adapter |
 |
 |
 |
|
|
|
The VScom USB-CAN is an adapter from USB to CAN. It connects a PC via the USB interface to the CAN bus. Since current computers all have several USB ports, the installation is simple. Even the previous standard of USB 1.1 with 12 Mbit/s max. speed is sufficient to connect the VScom USB-CAN to a computer.
CAN bus is widely used in industrial applications as well as in automotive monitoring and control. The VScom USB-CAN can be used to monitor the data traffic in such installations, as well as sending control information. The performance of VScom USB-CAN is among the best available in the market of CAN-on-USB products.
Since hardware-based automatic flow control is implemented at the interface between the CAN controller and the PC, the data reliability is very high.
• The ASCII conversion protocol is useful in developing and testing any configuration. Users just open the serial port via a Terminal Program, and have a simple way to talk to the CAN controller. The same way they can also transmit and receive CAN frames.
• Applications programmed by users load the library (DLL), which transparently handles the ASCII conversion. Programmers handle only the CAN frames and status, they do not have to care about the ASCII conversion in their applications. This API is supported in C/C++, C#, VB.NET, Delphi and LabVIEW.
• USB-CAN also supports CANFestival, an Open Source CANopen Framework. CANopen is a CAN-based higher layer protocol that is used in various application fields, such as medical equipment, offroad vehicles, maritime electronics, railway applications or building automation. CANopen unburdens the developer from dealing with CAN-specific details such as bit-timing and implementation-specific functions. It provides standardized communication objects for real-time data, configuration data as well as network management data.
• CANHacker, a tool for analyzing and transmitting frames on the CAN BUS, is included in the product package.
• A set of Mapper DLLs simulates PCAN-Light compatible hardware. Users configure their system to use the PCAN-Light products or the USB-CAN adapter. So existing software will use the USB-CAN without replacing the application.
PCAN is a trademark of PEAK-System Technik GmbH.
|
|
| Features |
- Connects a PC via USB to CAN bus
- Supports CAN 2.0A and CAN 2.0B
- CAN High Speed up to 1 MBit/s
- Remote Frame support, Listen only mode
- Supports Windows 2000 to Server 2008 R2, CE
- Supports Linux kernel 2.4.32+
- Supports C/C++, C#, VB.NET, Delphi and LabVIEW
- CANopen supported by CANFestival
- USB 2.0 Full Speed, powered by USB
- Driver emulates serial port for easy access
- Library (DLL) for standard access
- ASCII conversion protocol via serial port
- Metal case
|
 Back to Top |
| Specifications |
| CAN |
Speed |
CAN High Speed (20kbit/s up to 1Mbit/s) for transmit/receive
|
Signals |
CAN_H, CAN_L, CAN_GND, CAN_V+, GND |
Controller |
SJA1000 (Philips) |
Transceiver |
TJA1050 (Philips) |
LED |
CAN Activity (Data)
CAN Error |
Connector |
DB9 male |
| Back to Top |
| USB |
Interface |
USB 2.0 Full Speed |
Power |
USB Bus powered, max. 200 mA |
Driver |
Emulated serial port, 3 Mbit/s |
Operating Systems |
Windows 2000 up to Server 2008 R2
Linux kernel 2.4.32+
Mac OS X support available
|
LED |
USB Power |
Connector |
USB Type B socket |
| Back to Top |
| Driver and software |
Library |
Unified API for simple access on all Vscom CAN products.
Supports Windows, CE, Linux (x86, x86-64, ARM) targets.
Supports C/C++, C#, VB.NET, Delphi and LabVIEW. |
Compatibility |
Mapper DLLs simulate software interface of PCAN-Light devices
|
CANFestival |
CANopen examples showing Master/slave communication
|
Speed |
CAN Speed selectable up to 1 Mbit/s |
Transfer |
ASCII coding mode |
CAN Mode |
Listen Mode : Passive receive of CAN Frames, neither ACK bits nor Error Frames
Self Reception : For test purposes, transmitted Frames are received by the adapter
|
Monitoring Tool |
USB-CAN is supported by CANHacker |
| Back to Top |
| Power and Environment |
Power |
Max. 1W |
Power supply |
Max. 200mA via USB port |
Dimensions |
50 x 58 x 23 mm (W×L×H) |
Operating Temp. |
0°C - 60°C |
Storage Temp. |
-20°C - 85°C |
Case |
SECC sheet metal (1mm) |
Weight |
50g |
| Back to Top |
| Approvals |
EMC |
FCC Class A, CE Class A |
Environment |
RoHS |
| Back to Top |
| Ordering Information |
Art.No |
420 |
Product Name |
USB-CAN |
Packing list |
. USB-CAN
. High-Speed USB cable
. English Documentation |
