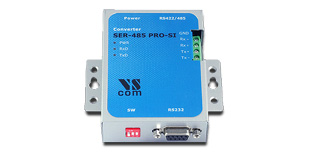

SER-485 PRO-SI

1 port RS232 to RS422/485 Software Configurable
and Opto-isolated Converter


The SER-485 PRO-SI is an adapter to convert bidirectional signals from RS232 to RS422 and RS485 in industrial environments. In RS485 mode the data direction is managed by the bitrate adaptive function of ART (Automatic Receive Transmit control). ART analyzes the data in real-time, and adapts to the setup of the RS232 port.

The SER-485 PRO-SI is an optical isolated variant of the SER-485 PRO. Further the device is Surge Protected up to 4kV.

All options and parameters of SER-485 PRO-SI operation are configured by software, controlled via an easy-to-use menu structure. This menu is accessed via standard terminal programs. The SER-485 PRO-SI is a NO Jumper type of device.

With SER-485 PRO-SI often used operation modes are selected by simple DIP switches. The full versatility is controlled by the built-in software configuration menu. The behaviour of RS422 and various options of RS485 are selected by an easy-to-use menu structure.

The internal termination and BIAS (polarization) resistors allow to prepare the RS485 signals for connection to customers networks. These internal resistors are activated by relays, controlled by the configuration menu. There is no need to open the case for configuration.

  RS232

DTE/DCE selected by DIP

  RS485

Automatic Receive Transmit control (ART)
Baudrate adaption in real time

  Line Adjust

Built-in Termination and Polarization (BIAS) resistors

  Operation Modes

RS422 with hardware handshake
RS485 by ART, RTS or DTR
RS485 Half- and Full-Duplex
Two basic modes selected by DIP switch

  Cable Length

Max. 1200 m

  Speed

Max. 1Mbps
Max. 250kbps with ART

  Connector

RS232 1x DB9 female
RS485/RS422 1 x DB9 male plus Terminal Block (5 c-clamps)

  Configuration Menu

Various parameters of signal conversion are defined via an easy-to-use menu interface, access is via standard terminal programs (Hyperterminal, miniterm, ...)

  Operation Modes

RS422
RS485 by RTS
RS485 by DTR
RS485 by ART (Automatic Receive Transmit control)

  ART options RS485

Transmit/Receive change as quick, average, standard

  Wiring

RS422 (4-wire)
RS485 Full Duplex (4-wire)
RS485 Half Duplex (2-wire) with Echo
RS485 Half Duplex (2-wire) no Echo

  Termination

RS422/485 line termination 120Ω isolated by relay, controlled via software configuration

  RS485 BIAS

BIAS (polarization) by special drivers, controlled via software configuration

  Power requirements

9-30V DC, 800mW

  Power supply Adapter

12V DC, 500mA

  Dimensions

58 x 92 x 28 mm (W×L×H)

  Operating Temp.

0°C - 60°C

  Storage Temp.

-20°C - 85°C

  Case

SECC sheet metal (1mm)

  Weight

160g

  EMC

FCC Class A, CE Class A

  Environment

RoHS

  Art.No

418

  Product Name

SER-485 PRO-SI

  Packing list

. Converter SER-485 PRO-SI
. Power Supply
. English Documentation

  Optional Accessories

. DIN-Rail mounting clamp
