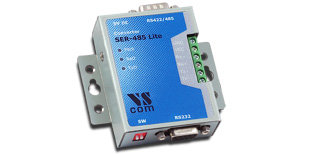

SER-485 Lite

1 port RS232 to RS422/485 Converter


The SER-485 Lite is a cost effective adapter to convert bidirectional signals from RS232 to RS422 and RS485. In RS485 mode the data direction is managed by the bitrate adaptive function of ART (Automatic Receive Transmit control). ART analyzes the data in real-time, and adapts to the setup of the RS232 port.

With SER-485 Lite standard operation modes are selected by simple DIP switches. The full versatility is controlled by a built-in software configuration menu, which is accessed via terminal programs. The behaviour of RS422 and various options of RS485 are selected by an easy-to-use menu structure.

The internal termination and BIAS (polarization) resistors allow to prepare the RS485 signals for connection to customers networks.

  RS232

DTE/DCE selectable, optional power over special pin

  RS485

Automatic Receive Transmit control (ART)
Baudrate adaption in real time

  Line Adjust

Built-in Termination and Polarization (BIAS) resistors

  Operation Modes

RS422 with hardware handshake
RS485 by ART, RTS or DTR
RS485 Half- and Full-Duplex
Two basic modes selected by DIP switch

  Cable Length

Max. 1200 m

  Speed

Max. 1Mbps
Max. 250kbps with ART

  Connector

RS232 1x DB9 female
RS485/RS422 1 x DB9 male plus Terminal Block (5 c-clamps)

  Configuration Menu

Various parameters of signal conversion are defined via an easy-to-use menu interface, access is via standard terminal programs (Hyperterminal, miniterm, ...)

  Operation Modes

RS422
RS485 by RTS
RS485 by DTR
RS485 by ART (Automatic Receive Transmit control)

  ART options RS485

Transmit/Receive change as quick, average, standard

  Wiring

RS422 (4-wire)
RS485 Full Duplex (4-wire)
RS485 Half Duplex (2-wire) with Echo
RS485 Half Duplex (2-wire) no Echo

  Power requirements

5V DC, 400mW

  Power supply Adapter

5V, 500mA

  Dimensions

56 x 73 x 23 mm (W×L×H)

  Operating Temp.

0°C - 60°C

  Storage Temp.

-20°C - 85°C

  Case

SECC sheet metal (1mm)

  Weight

100g

  EMC

FCC Class A, CE Class A

  Environment

RoHS

  Art.No

416

  Product Name

SER-485 Lite

  Packing list

. Converter SER-485 Lite
. Power Supply
. English Documentation

  Optional Accessories

. DIN-Rail mounting clamp

You can purchase VSCOM's products easily from a wide variety of leading technology distributors or partners. Please call us or contact us by mail to find the best ordering method for your needs.
