NetUSB-400i

4 x USB 2.0 for LAN

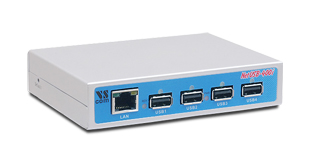

NetUSB-400i
Features
Specifications
Ordering Information
Drivers & Documentation
Datasheet
Inquiry this product
View Larger Image

The NetUSB-400i controls four USB 2.0 devices via Ethernet. The four USB ports on NetUSB-400i are seen as installed in the Windows PC. Devices connected to the ports are detected via Plug&Play. Several PC may use the same devices on a time-sharing base.

USB printers offer an automatic sharing option, to connect them when data is printed. Other PC use the same printer as soon as the previous job has finished printing.

The metal case and the flexible power supply make the NetUSB-400i a good choice in rough office and industrial environments.

Features

  • Phased Out, no longer available
  • Controls 4 USB 2.0 devices located in the LAN
  • Auto-detecting 10/100Mbps Ethernet interface
  • Driver automatically finds USB servers on LAN
  • Supports Windows XP, Vista, 7 to 8.1
  • Protocols TCP/IP,UDP, HTTP, DHCP,ICMP,DNS
  • Administration Software

Back to Top
Specifications
Hardware
  Processor
ARM 9 170 Mhz
  Memory
32MB SDRAM, 8 MB Flash
  Connector type
USB type A Port
RJ45 for Ethernet
Back to Top
Interface
  Ethernet interface
Auto-detecting 10BaseT/100BaseTx
  Protocols
TCP/IP, UDP, DHCP, ICMP, HTTP, DNS
  USB interface
USB 2.0 High Speed
  No. of port
4
  No. of devices
4
  Available Modes
Bulk transfer
Isochronous transfer
Back to Top
Performance
  Speed
Up to 480Mbps
  IRQ
None
  I/O address
None
Back to Top
Power and Environment
  Power requirements
9 - 30V DC, 1.2A @ 12V
  Dimension
127×92×27 mm³ (W×L×H)
  Operating Temp
0°C - 55°C
  Storage Temp
-20°C - 85°C
  Case
SECC sheet metal (1mm)
  Weight
300 g
Back to Top
Special Features
  Installation
Administration utility automatically finds USB servers in the network
  Configuration
Configuration over Driver Panels, WEB Browser
  DNS
Domain Name Server support
  Firmware
Firmware update over Administration Software and WEB Browser
  LEDs
LEDs for Power, Ready, Ethernet Link/Speed, USB usage
Back to Top
Ordering Information
  Part Number
413
  Product Name
NetUSB-400i
  Packing list
NetUSB-400i
Power adapter
CD-ROM with Driver and Configuration Software
Back to Top
Optional Accessories
  662
DK 35A
DIN-Rail mounting kit
Back to Top
