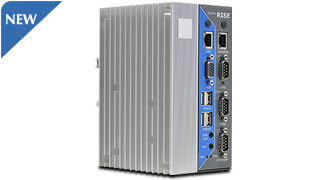

| Features |
- VIA Nano or Eden, 500MHz to 1.3GHz
- VX800 chipset, 800/500MHz FSB
- 1 GB DDR2 SDRAM
- Optional WLAN, Bluetooth
- USB 2.0 on Express card 34 slot
- HD Audio, speaker and microphone
- HDD/SSD drive bay
- 2 x Giga LAN
- Digital and Analogue I/O
- Optional CAN Bus 1Mbit/s
|
 Back to Top |
| Specifications |
| Chassis |
Construction |
Full size SECC stainless steel
Aluminum cooling plate with fins |
Mounting configuration |
DIN Rail |
Cooling system |
Passive heatsink, fanless |
LED indicator |
Power on/off, HDD access, LAN access |
Expansion slot |
1 x Mini PCI Express, PCIe x1, USB 2.0 and 1.x
1 x Express Card 34, USB 2.0 and 1.x only |
Dimensions |
163 x 111 x 83 (mm) |
Power switch |
Bottom side |
Reset Switch |
Bottom side |
| Hardware |
Processors |
VIA NANO 64 bit @ 1.3GHz, 800MHz FSB
VIA NANO 64 bit @ 1.0GHz, 800MHz FSB
VIA Eden @ 500MHz, 500MHz FSB |
CPU socket |
Q7 module |
BIOS |
Phoenix-Award |
Chipset |
VIA VX800 |
| Memory |
Memory type |
DDR2 1GB |
Memory socket |
Soldered onto Q7 module |
BIOS |
4MBit SPI Flash |
| Back to Top |
| Video |
VGA Controller |
VIA Chrome9™ HC3 integrated graphics |
Video RAM |
up to 256MB frame buffer |
Interface |
VGA |
Resolution |
Up to 1024 x 768 / 32bit |
Extras |
MPEG-2, MPEG-4, VC1 and DiVX video decoding acceleration |
| Integrated Devices |
HDD/SSD Bay |
1 x 1.8" SATA HDD or SSD |
CF card slot |
1 x CF card in True IDE mode |
Audio |
Mic-in, 1 x Speaker-out |
Real Time clock |
Standard |
Keyboard/Mouse |
Connect at USB
Internal pin header for PS/2 Keyboard and Mouse |
| Connectivity |
LAN |
2 x RJ45 GigaLAN, Marvell 88E8057 |
USB |
4 x USB 2.0
supports boot function from USB |
VGA |
1 x 15-pin connector |
Com Ports |
2 x RS232 DB9 male, max. 115.200bps
1 x RS232 DB9 male, max. 500.000bps. Replaceable by CAN
1 x RS422/485 on terminal block
|
RS422/485 |
Up to 1 Mbit/s (theor. 12 MBit/s)
RS422 Full-Duplex
RS485 bus mode configured by DIP switch
RS485 Automatic Transceiver control
Signals on Terminal Block |
HD-Audio |
Line-in (Mic-in)
Line-out ear-jet connectors |
CAN bus |
CAN bus is realized in the RISE 4310 model. |
| Digital and Analogue I/O |
Input |
4 x Digital, TTL level (0.0 to 0.8V, 2.0 to 5.0V)
System Wake-Up Capability by DI changes |
Output |
4 x Digital, TTL level
Source: 32mA@High (2.0 to 5.0V)
Sink: 64mA@Low (0.0 to 0.6V) |
Counter |
2 x TTL level, programmable count period |
ADC |
2 x Single Ended Channels
Input Range: 0.0 to 10.0V
Resolution: 10 Bit |
I²C |
1 x for external Wake-Up |
Connectors |
Terminal Blocks on Top and Bottom |
| Back to Top |
| Power supply |
Power Input |
DC 10-30V |
Consumption |
Min. 21W |
| Environment |
Operating Temp. |
-20° to +55°C |
Storage Temp. |
-20° to +80°C |
| Supported OS |
Windows |
Win XP, Win XPE, Windows 7 |
Linux |
Kernel 2.4 / 2.6 |
| Additional option CAN interface |
Speed |
CAN High Speed (up to 1Mbit/s) for transmit/receive |
Signals |
CAN_H, CAN_L, CAN_GND, CAN_V+, GND |
Controller |
SJA1000 (Philips) |
Transceiver |
TJA1050 (Philips) |
Standards |
CAN 2.0A and 2.0B, ISO11898 |
CAN Listen mode |
Passive receive of CAN Frames, neither ACK bits nor Error Frames |
Connector |
DB9 male, replaces RS232 port 3 |
Library |
Functions for simple access |
CANFestival |
CANopen examples showing Master/Slave communication |
| Back to Top |
| Approvals |
EMC |
FCC Class A, CE Class A |
Environment |
RoHS |
| Ordering Information |
Art.No |
3870 (RISE 4300) |
Product Name |
RISE 4000 series |
Order Options |
|
Packing list |
. RISE 4000 series Embedded System
. Terminal blocks for Digital-I/O and Power supply
. CD, English documentation
|
Optional Accessories |
. mPCIe module for Wireless LAN
. Express card module for 3G/UMTS/HSDPA/GPRS/GSM
. mPCIe module for Bluetooth |
